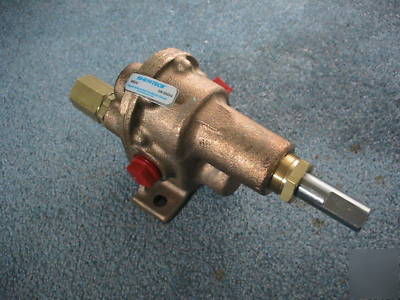

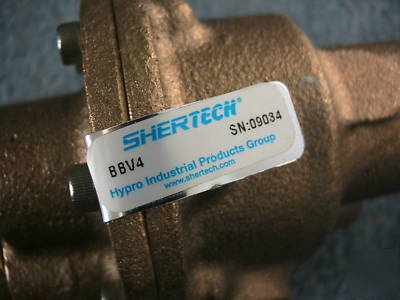

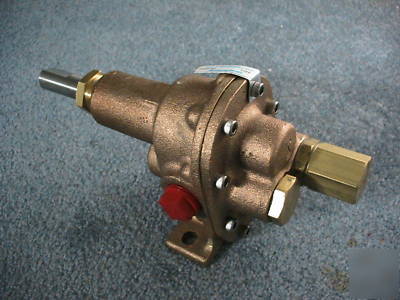

New shertech bronze gear pump BBV4 - in box
Shertech self-priming, positive displacement, external rotary gear pumps are ideal for a wide range of light-duty industrial,
marine, agricultural, and commercial applications, providing a nearly pulseless flow and are designed specifically for reduced
speed operations. Some models include an internal pressure relief valve. Limited self-priming capability on packing seal types.
Pillow block shaft assembly is required when pulley driven. Motors are not included.
Uses: For use with non-particulate and non-abrasive fluids compatible with pump wet-end construction component materials.
Maximum viscosity of 100,000 SSU at reduced speed (max. input torque of 45 -160 in.-lbs.)
Temperature ranges from -20 to 280 F
Bushings Steel, bronze or carbon/graphite
Maximum working pressure: 130 PSI
Pumps can operate bi-directionally (reversible). In the opposite rotation, the pump pressure relief valve, if equipped, will
Excellent for water-based fluids. Pumps have 303 stainless steel shafts. Models without zerks are available with or
without internal pressure relief valves and include carbon graphite drive shaft bushings. Packing Kevlar
temperature range of -20 to 210 F. Wet-end parts: Zerk models are constructed from stainless steel (17-7, 300 series and/or
18-8), bronze, brass, vellumoid, Kevlar
, and Teflon . Non-zerk models are constructed from 303 stainless steel, bronze, brass,
vellumoid, carbon, graphite, Kevlar
, and Teflon . Models that include internal pressure relief valves also have stainless steel
(17-7, 300 series and/or 18-8) wet-end components.
