Foxboro 83W-04SSS1-a vortex flowmeter 4"

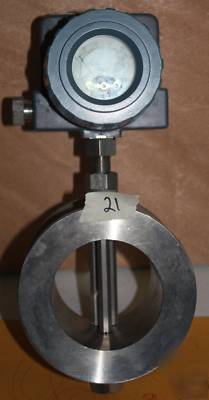

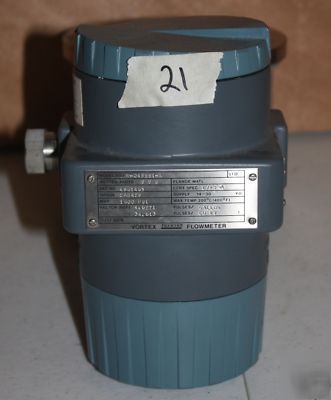

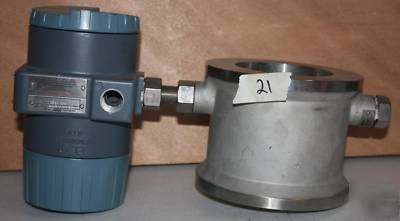

Foxboro Vortex Flowmeter 83W-04SSS1-A
RANGE 4 MA @ 0- 20MA@710 GPM CAL. DENSITY 62.37 #/CUFT W/METER
CERT. SPEC. E/FD-A FACTOR 4.6271 PULSES/GAL
Model Number Breakdown: 83W-04SSS1-A
83W - Vortex Flowmeter - Wafer Body
S - ASTM A351-CF8M (316SS) Cast Body and Shedder
S - Sensor Fill (Silicone), Temp Range (0 to 400 degF), Material (Stainless Steel type CF3m)
