75 cubic foot sanitary stainless steel paddle blender

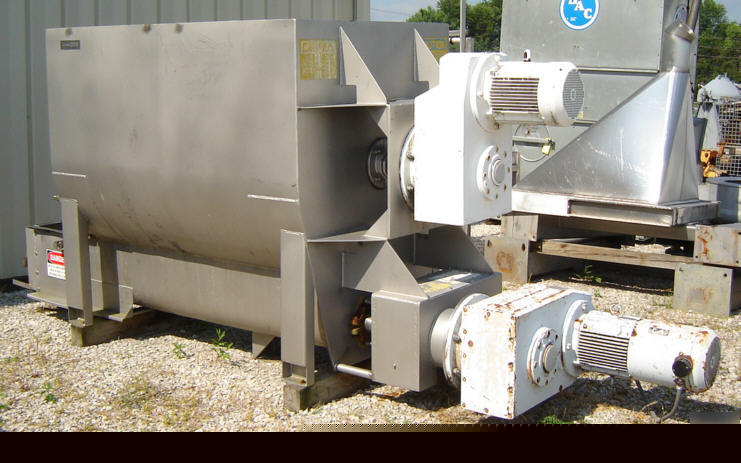

75 CUBIC FOOT SANITARY STAINLESS STEEL PADDLE BLENDER
MODELS 3000HB. S/N's 1956-A, 1956-C, 1956-D. MANUFACTURED BY AMERICAN PROCESS SYSTEMS. 304 STAINLESS STEEL CONSTRUCTION. SHELL IS 7 GAUGE WITH END PLATES AND GUSSETS OF 1/4" THICK STAINLESS STEEL. LEGS ARE 3" X 6" RECTANGULAR TUBING. INTERNAL AND EXTERNAL WELDS ARE CONTINUOUS, GROUND SMOOTH AND POLISHED. ALL PRODUCT CONTACT SURFACES ARE POLISHED TO A SANITARY FINISH. EXTERIOR SURFACES HAVE A GLASS BEAD FINISH. BLENDER SHAFT: 4.25" DIAMETER 304 STAINLESS STEEL. CONFIGURATION OF BLENDER CONSISTS OF 2/3 OF LENGTH TO HAVE PADDLES AND REMAINING 1/3 LENGTH TO HAVE BREAKER BARS. TWIN SCREW DISCHARGE ARRANGEMENT. SCREW SHAFT: 3.5" SCHEDULE 80 PIPE, 304 STAINLESS STEEL WITH 12" DIAMETER VARIABLE PITCH FLIGHTING. DRIVE AND ALL NON 304 STAINLESS COMPONENTS ARE PRIMED AND PAINTED WITH PRATT & LAMBERT ALCYD / OIL ENAMEL # 1304 MICA OR EQUAL. BLENDER DRIVE IS EURODRIVE MOTOR: 1800 RPM, TEFC, 10 HP #DT100L4 . EURODRIVE REDUCER: SNUGGLER 139.92:1 RATIO, 12 RPM OUTPUT FAF-90. SCREW FEEDER DISCHARGE DRIVE IS EURODRIVE MOTOR 1800 RPM TEFC, 10 HP, 460/3/60 WITH EXTERNAL VENTILATOR #DV132M4-V. EURODRIVE REDUCER: SNUGGLER, 107.89:1 RATIO, #FAF-100. UNITS WERE ORIGINALLY INSTALLED WITH BLH LOAD CELLS ON ALL FOUR LEGS. THESE LOAD CELLS ARE AVAILABLE FOR AN ADDITIONAL $2,000.00 PER SET. DISCHARGE SLIDE VALVE WITH STAINLESS STEEL AIR CYLINDER AND SOLENOIDS ON BOTTOM OF UNLOADING SCREWS. REFERENCE DRAWING AMERICAN PROCESS DWG # 2991 DATED 7-12-90. WEIGHT IS 7016 POUNDS APPROX. BUILT IN 1990. OVERALL DIMENSIONS: 4' W x 13'-6" L x 5'-6" H. MANUAL ON FILE. EXCELLENT CONDITION.
