> 125 kva sciaky welder seam type; model#: DMM2TCD
125 kva sciaky welder seam type; model#: DMM2TCD

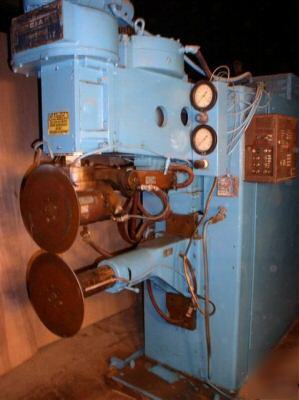

(1) Used 125 KVA SCIAKY Welder Seam Type; Model#: DMM2TCD; S/N: 4923
Maximum T.I.P Pressure(lower arm).......... 2,500 lbs
Diameter of Wheels..................................... 14"
Vertical of Lower Arm................................. 18" (Max.)
Upper Arm Stroke........................................ 10" (Max.)
Capacity 125 KVA @ 50% Duty Cycle
Secondary Volts ... 1.2 (Min.)
Short Circuit Security Current..................... 45,000 Amps (Max.)
Electrical Characteristics .. 440 V.A.C.
Pressure Ratio .. 50-1
Water Temperature Input 10 C (Min.)
Water Pressure Required 35 Lbs.
Electrical Characteristics............................ 220 V.A.C./60Cycle/1 PH
Overall Dimensions:........................................40'' L-R x 107'' F-B x 89'' High (Est.)
Weight:......................................................6,000 lbs (Est.)
F.O.B ..............................................Casa Grande, AZ
