New hastings vt-6 / dv-6 vacuum pump gauge equivalent
BUSINESS HOURS - Our business hours are 8:00 AM to 4:30 PM M-F Eastern Time zone. If you send a question outside those times it will be answered the next business day.
BRAND NEW WITH 2 YEAR WARRANTY!

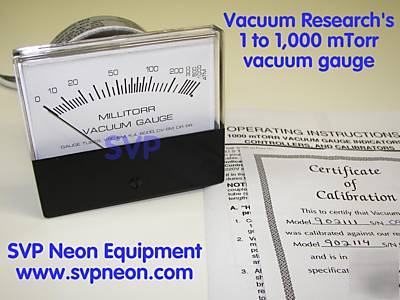

Equivalent to the popular Hastings VT-6 vacuum gauge, Vacuum Research s 1 to 1,000 mTorr (millitorr/micron) thermocouple vacuum gauge is an accurate, reliable, low cost alternative to its high-priced competitor. The instrument may be operated from 90 to 240 volts at 50 or 60 Hz and may be used with either VRC-6 series gauge tubes* or Hastings DV-6 series gauge tubes*. No calibration or adjustment to the gauge is required when switching from one manufacturers gauge tube to the other.
*In the neon industry vacuum gauge tubes are often referred to as vacuum gauge sensors .
VRC 1 to 1,000 mTorr vacuum gauge: P/N 902111
Operating Instructions & Certificate of Calibration included.
Reliable 1 to 1,000 mTorr (micron) T/C gauge
Self contained compact meter
Use with VRC-6 or Hastings DV-6 gauge tubes
Operates from 90 to 240 volts, 50/60 Hz.
Fits same cutout as Varian, Televac & Hastings
0 to 5 volt output for computer I/O or control
Pressure range: 1 to 1,000 millitorr (1 to 1,000 microns). Air/N2
Accuracy: Better than +/- 1 mTorr from 1 to 20 mTorr. Better than 5% from 20 to 1,000 mTorr
Response Time: 1 mTorr to ATM - less than 1 sec.
Gauge Tube: VRC-6 series or Hastings DV-6 series
Analog Output: 0 to 5 VDC into 10 K ohms minimum
Power: 90 to 240 volts, 50/60 Hz under 2 watts
Line regulation: Reading changes < +/- 0.3% for line voltage change of 90 to 240 volts
Mounting: DIN panel standard
Cables: 10 ft. gauge tube with connector & 6 ft. power cord with standard 115 volt plug provided
WE OFFER CALIBRATION SERVICES FOR THESE GAUGES AS WELL AS HASTINGS VT-6, VT-5 & NV-8 GAUGES.
SEE ALL OUR LISTINGS FOR OTHER QUALITY NEON EQUIPMENT & SUPPLIES
