Asco EF8342C4MS 4-way solenoid valve, 3/8" pipe size

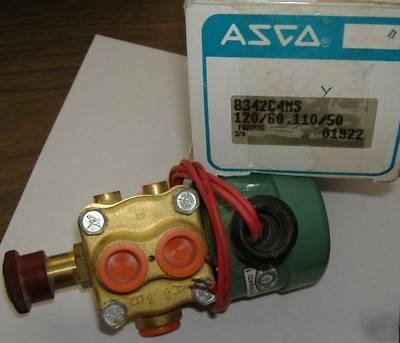

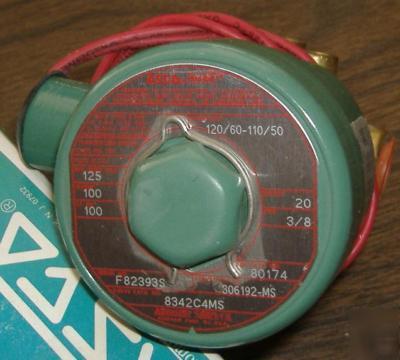

ASCO EF8342C4MS 4-Way Solenoid Valve (S/N F82393S) New Surplus in Original Box
(Note: Same as EF8342G3MS or EF8342G003MS - the "C4" became a "G3")
* Brass Body, NBR Seals and FKM Discs,
* Graphite-Filled PTFE Seats
* "EF" Explosionproof and Watertight Enclosure (Types 3/3S/4/4X/6/6P/7/9)
* Volts/Hz: 120/60-110/50, Watts: 20,
* Standard Class F Insulation: 32 F to 125 F (0 C to 52 C)
Max. Operating Pressure Differential: Air-Inert Gas: 125 PSI, Water: 100 PSI,
Lt. Oil @ 300 SSU: 100 PSI.
"MS" Screw Type Manual Operator (Operates the valve manually when electric power
Direct acting operation and high flow construction
Direct acting, high flow slide-style valve
No Minimum Operating Pressure Differential required to shift valve
