4'9" cin-bickford "super-service" radial drill #25315

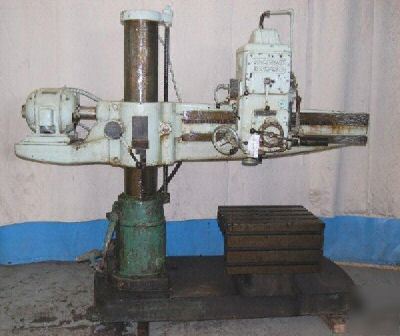

4'9" CINCINNATI-BICKFORD "SUPER-SERVICE" RADIAL DRILL
Serial No 1R4273, Model 1R, Series "SUPER-SERVICE"
Arm Length............................. 4'
Column Diameter........................ 9"
Horizontal Head Travel on Arm.......... 38.5"
Vertical Arm Travel on Column.......... 27.25"
Vertical Spindle Travel in Head........ 10"
Spindle-Radius, Minimum................ 16.5"
Spindle-Radius, Maximum................ 55"
Spindle-Nose to Base, Minimum.......... 15.75"
Spindle-Nose to Base, Maximum.......... 53"
Column-Face to Spindle, Minimum........ 9.5"
Drills to Center of Circle on Base..... 8'
Spindle Nose Diameter.................. 2-13/16"
Spindle Taper.......................... #4 MT
Spindle Speeds, Range.................. 60 to 1200 RPM
Spindel Feeds, Range................... .002 to .010 IPR
Floor Space Required, W x D............ 8'10" x 11'3"
Weight, Approximately.................. 4500 LBS
PRICE: F.O.B. OUR WAREHOUSE............ $2,450.00
