25-range bridge lcr ohm capacitance inductance meter

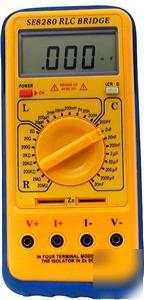

Professional Bridge-Type LCR Meter, SE8280
The SM8280 is a hand-held digital LCR bridge that measures capacitance, inductance, resistance, and dissipation factor. Its' VECTOR MEASUREMENT technology separates the reactance from the resistance in the device under test, thereby enabling measurement of true L, C, R, and D parameters. The 4-wire measurement technique enables accurate measurement of both low and high impedances. This advanced, high-end meter will provide years of reliable operation.
Specifications:(click to see the details)
Cp Parallel equivalent capacitance
200p/2nF/20nF/200nF/2uF 0.50%- 2.0%
Cs Series equivalent capacitance
20uF/200nF/2000nF/20mF 0.50%- 2.0%
Capacitance Dissipation Factor: 0~1.999
Accuracy: 1%+10+2000/Cx(2nF
*Cx is capacitance readout in counts
200uH/2nH/2mH/20mH/200mH/2H/20H/200H 2.0- 5.0%
Inductance Dissipation Factor: 0~1.999
Accuracy: lX<200mH (1%+10+2000/Lx); 200mH
*Lx is capacitance readout in counts
2 Ohm/20 Ohm/200 Ohm/2K/20K/200K/2M/20M Ohms
