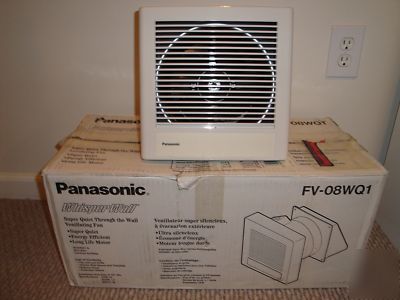

Panasonic whisperwall thru wall fan
* Static Pressure in inches w.g. 0.03
* Air Volume (CFM) 70 / (54 at 0.25" static pressure)
* Power Consumption (Watts) 18 at 0.03" static pressure
* Energy Efficiency (CFM's/Watt) 3.9
* Speed (RPM) 660 at 0.03" static pressure
* Current (Amps) 0.2 / (0.2 at 0.25" static pressure)
* Type of Motor Bearing Sleeve
* Mounting Opening (inches sq.) Use Enclosed Template
* Grille Size (inches sq.) 10-1/8"
* UL Listed for Tub/ Shower Enclosure, when used with a GFCI branch circuit wire
* Mfg in ISO 9001 Certified Facility
* Totally Enclosed Condenser Motor, for long life - Rated for continuous run
* Rust Proof Paint Treatment, on galvanized housing
* Built-In Damper, to prevent back draft
I bought this fan several years ago for a house project that never happened and it's been sitting on my shelf ever since.
