New - multi ashcroft gauge instrument panel 3D37843G01

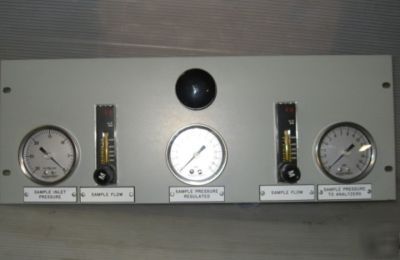

NEW - Multi Ashcroft Gauge Instrument Panel 3D37843G01
* The face plate is 19 x 7

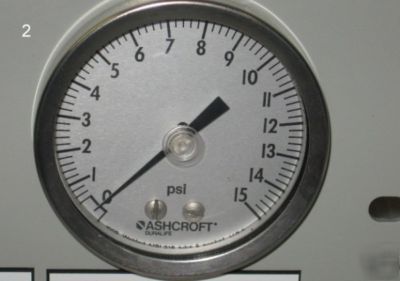

* This panel has two Ashcroft pressure gauges (picture #2). The gauges have a range of 0-15 PSI

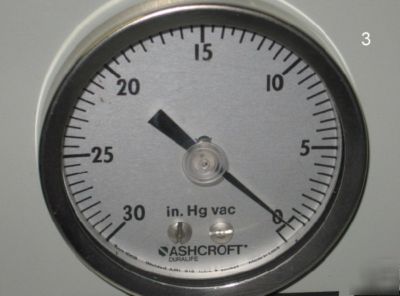

* This panel has one Ashcroft pressure gauge (picture #3). This gauge has a range of 0-30 in. HG Vac

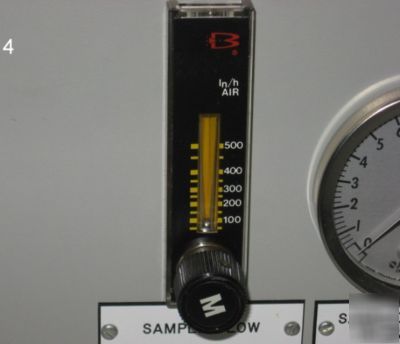

* This panel has two Brooks flow gauges (picture #4). These gauges are model 2700-V and the range is 100-500 In/h air

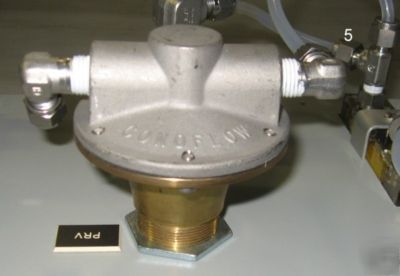

* This panel has an ITT pressure regulator (picture #5). It is p/n GH10XT1014AI88

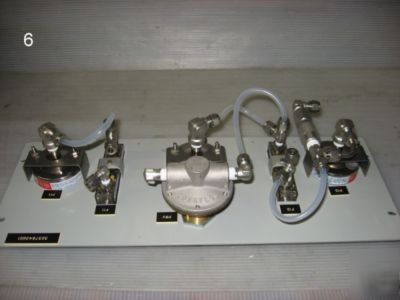

* Picture #6 shows the back of the panel

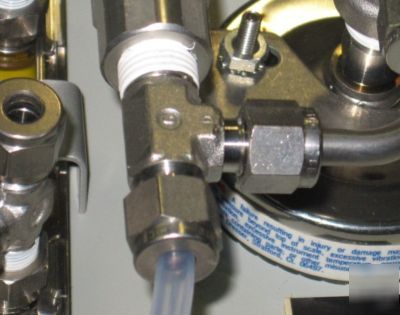

* This panel also has four - T- fittings, four 90 elbows and two 90 elbows.
* There are two mounting slots. The slots are x and are 4 apart top to bottom and 18 side to side
* The overall dimensions are 19 x 7 x 5
