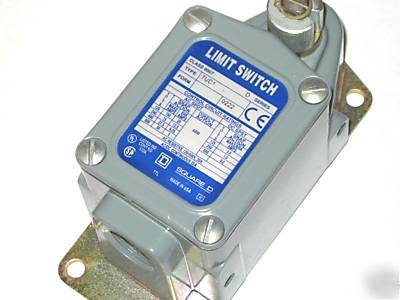

New 9007-TUD1 square d limit switch spdt ac 9007TUD1
9007TUD1 SQUARE D LIMIT SWITCH SEVERE DUTY 9007-TUD1
CONTACT RATING 600 VAC/VDC 20 AMPERE; SPDT AC / SPST DC
CONTACT CONFIGURATION SPDT, 1NO-1NC;
ACTUATOR/HEAD TYPE SIDE ROTARY;
OPERATION TYPE SPRING RETURN, CLOCKWISE/COUNTER CLOCKWISE;
OPERATING FORCE 12 LB-INCH; 88 DEG TOTAL TRAVEL;
1/2 INCH NPT CONNECTION; OPERATING TEMPERATURE -10 TO 185 DEG F;
NEMA 1/2/4/12/13; APPROVAL UL, CSA, CE; 9007 MODEL;
600 VAC AT 50/60 HZ 30 AMPERE (INDUCTIVE),
600 VAC AT 50/60 HZ 5 AMPERE (RESISTIVE),
600 VDC 0.2 AMPERE (INDUCTIVE/RESISTIVE)
