Airoha AR1010 2PCS fm radio module pcb
FM Receiver Module - PCB Airoha 2pcs!!

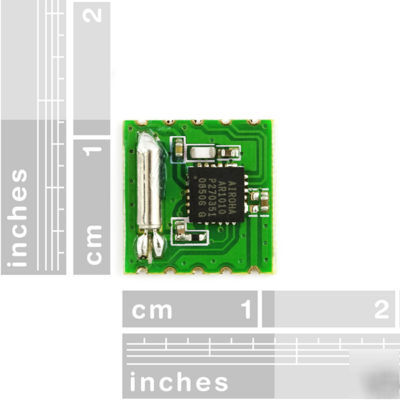

This is a very small single chip FM receiver module found in many portable media players.
Based on the AR1010 IC from Airoha, the FM receiver uses a simple command set over an I2C or SPI interface.
Crystal and supporting components are all on board, all you need to attach is an antenna!
* Example AR1000 ATMega168 Code for reference
* AR1010 Datasheet, Programming Guide, and sample C code available upon request
* TEA5767 Datasheet for reference
* Application Note for reference
