300MHZ oscilloscope X1 X10 probe kits RP3200 tektronix
New 300MHZ Oscilloscope probe kits for Agilent RIGOL Oscilloscope, 1X, 10X, One unit + accessories made by RIGOL
* General Purpose, Bench or Field
* Economical, Yet High Quality
* High Input Impedence (X1, X10 range)
* Useable with scopes having Bandwidth up to 300 MHz
* Interchangeable Probe Tip
* Compensation range: 5pF to 29 pF
* Input Capacitance: 1X: 26pF 5pF; 10X: 16pF 5pF
* Input Resistance: 1X: 1Mohm 2%; 10X: 10Mohm 2%;
* Bandwidth: 1X: DC-6MHZ, 10X: DC-300MHz
* Maximum Input Voltage: 1X: CATII 150 VAC, 10X: CATII 300 VAC

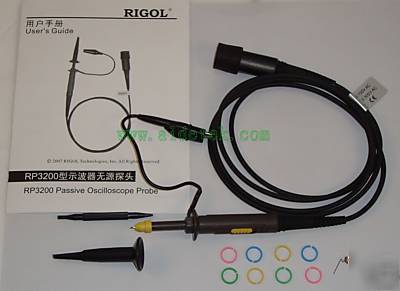

1) 1 unit of RP3200 300MHZ Oscilloscope probes with retractable hook tip and ground lead;
2) 1 Adjustment tool (Mini Screwdriver);
3) 8 marker Rings ( green, yellow, blue, and pink);
Click here to download the datasheet from our e-store Aidetek:
http:// /New_products_info/Photo/RIGOL/RP3200.pdf
