Rk L298 h-bridge pcb for dc motor control with L298 ic

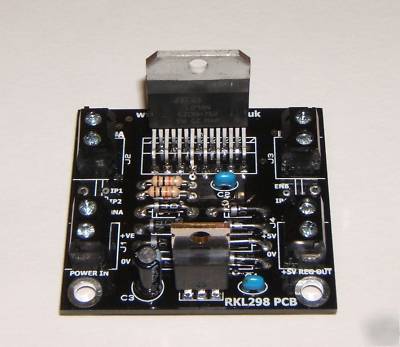

RKL298 H-Bridge PCB for DC Motor Control with L298 N IC
Great for projects using DC motors
Self build kit, contains the parts shown and an L298N
High quality double sided, black PCB
The PCB is drilled for PCB mounting feet
Uses terminal block for easy interfacing
Enable and input interface lines available
2 DC motors at a constant 2A each or 1 at 4A
For more information and instructions please visit
www.rkeducation.co.uk/rkl298.htm
12VDC operation - experienced users can increase this
The circuit incorporates a 7805 regulator that outputs regulated 5VDC via a 2 way terminal block
Includes brand new L298N H-Bridge Driver IC for DC Motors - Great for Robots
* Output Current Max:3A per channel
