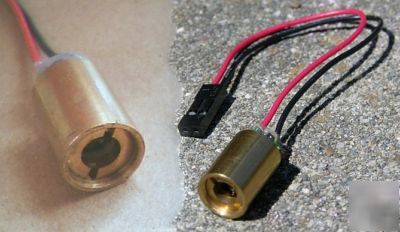

Laser diode module 4MW 650NM apc 10.5MM dia. 3 volt dc
* This is a New module we produced for a Sporting Goods Product. We made too many and this is your gain.
* We have about 9K pcs. IN STOCK !
* Tens of thousands of these sold by us.
* 10.5 mm in diameter X 22 mm long, including driver PCB
* Utilizes a 650 nm, 7 mW laser diode, made by an ISO 9001 diode manufacturer, not a cheap China laser that will die prematurely. These are long lifetime devices.
* Operates on 3 volts DC,drawing about 25 mA. Two batteries at 1.5 V each is fine.
* ~4 mW of laser power output, Class IIIa.
* Please see the data sheet for more details:http:// /html/CA_SPEC.DOC
2009 is our 12th year in the laser diode/ module business.
Let our extensive experience be put to work for your next Laser Project.
Easy hook- up- just add 3 volts DC and go. Has standard 0.1" female header type connector (PC mother borad type jumper style) at end of ~ 6" leads Operates on 3 volts DC, Operartes with about 25 mA of current. ~ 4 mW of laser power output, Class IIIa. All <5 mW. Add a small resistor in parallel on the PCB to increase power. Write us if you need higher powered units. This is our CA-3-4-650 module.
Ask about our other modules: plastic housing module & 3.3mm & 4 mm diameter module in brass- both with APC Diodes- no external PCB DRIVER (Driver Built into Laser Diode Can.
