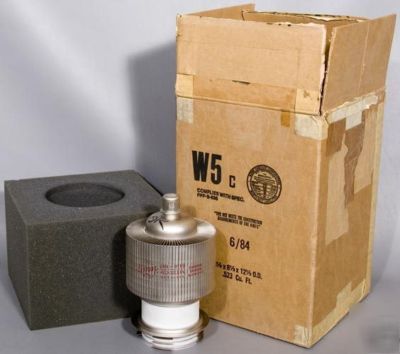

Eimac 4CX3000A/8169 tetrode power tube
Eimac 4CX3000A/8169 FAC TETRODE Tube
Specifications are from 3rd party and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
Tube tested 1 time by JFF Research as GOOD. Used in Ham Radio, Induction Heaters, Plasma Generators, and RF Generators.
Link to Datasheet: Eimac 4CX3000A Tube Datasheet
The Eimac 4CX3000A/8169 is designed to be used as a Class AB1 linear amplifier in audio or radio frequency applications. Its characteristic of low intermodulation distortion make it especially suitable for single sideband service. This tube is unique in that a production test is included to insure minimum distortion products. The 4CX3000A/8169 must produce a minimum of 5300 watts in Class AB1 service with 3rd order IM distortion at least 32 dB down, from one tone of two-tone signal. The tube is also recommended for use as a Class C radio frequency power amplifier and plate-modulated, radio frequency power amplifier.
Peak Anode Voltage (kV): 7.000
Typical Anode Current (A): 1.700
Typical Anode Dissipation (kW): 3.500
Typical Anode Voltage (V): 5,000
