leeson 1HP 3PH rpm 3450/2850 electric motor 110112-01

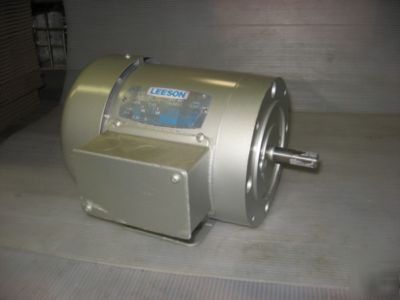

Leeson 1HP 3PH RPM 3450/2850 Electric Motor 110112-01
* New electric motor p/n 110112-01 made by Leeson

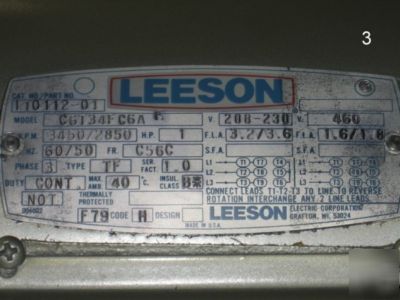

* The following information is on the motor (picture#3): Cat. No./Part No. 110112-01; Model C6T34FC6A; RPM 3450/2850; HP 1; Hz 60/50; FR C56C; P.F. 80; EFF 72; Type TF; Ser. Fact 1.0; Duty Cont.; Max AMB 40 C; Insul. Class B; PH 3; Code H; V 208-230, F.L.A. 3.2/3.6; V 460, F.L.A. 1.6/1.8

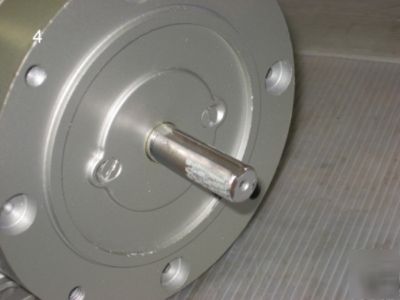

* The shaft (picture #4) is diameter and is 1 long. The keyway is 1 x 3/16 x 3/16 . The mounting pilot is 4.061 ID and 4.502 OD. There are four mounting holes around the housing. The holes form approximately a 5 bolt hole circle

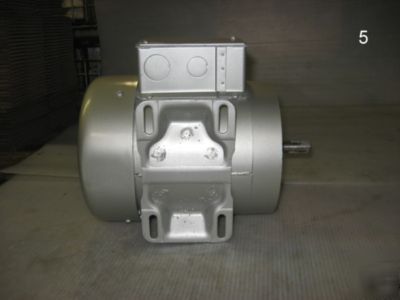

* The mounting bracket (picture #5) is 6 x 4 . There are four mounting slots. The slots are 1 x 5/16 and they are 3 apart end to end and 4 side to side
* The overall dimensions are 10 x 9 x 7
