Nice bei electronics encoder L25G-60-abz-7404-led-EM16

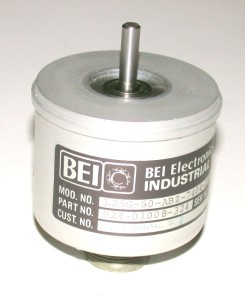

NICE BEI ELECTRONICS ENCODER L25G-60-ABZ-7404-LED-EM16
This is a very nice encoder in excellent condition and it is fully guaranteed.
Flat On Shaft: 0.80 long x 0.03 deep
Shaft Loading: up to 5 lbs. axial and 8 lbs. radial
Shaft Runout: .0005 T.I.R. maximum
Starting Torque at 25 C: 0.07 in-oz typical, 0.12 in-oz maximum without sealed
bearings; 0.50 in-oz typical, 1.0 in-oz maximum with sealed bearings
Bearing Housing: Die cast aluminum with iridite finish
Cover: Drawn aluminum, 0.060" wall, protective finish standard. Die cast aluminum
with protective finish for EM, SM, ECS and SCS terminations
Bearing Life: 1 X 109 revs (6,700 hrs at 2500 RPM)
Moment of Inertia: 4.1 x 10-4 oz-in-sec2
http:// /PDFs2/L25_Incremental_Encoder.pdf
