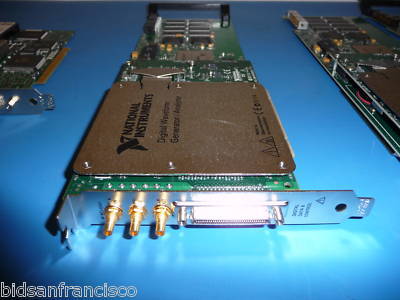

National instruments ni pci-6541 waveform generator $3K
Visit this link for more info about this card: http://sine.ni.com/nips/cds/view/p/lang/en/nid/14317
The National Instruments PCI-6541 is a 50 MHz digital waveform generator/analyzer for interfacing to digital electronics. This board features 32 channels with per-channel direction control and deep onboard memory with triggering and pattern sequencing. Through the NI-HSDIO driver, you can configure the board for 5.0, 3.3, 2.5, or 1.8 V logic. You also can use the NI PCI-6541 with the NI Digital Waveform Editor, an interactive software tool for creating and editing digital waveforms. With the SMC architecture, you can create mixed-signal test systems with digitizers, arbitrary waveform generators, and other digital waveform generator/analyzers, or you can synchronize multiple digital devices to build low-skew multichannel systems for interfacing to high-pin-count digital ICs and electronics.
TTL, LVTTL, 1.8 V, 2.5 V, 3.3 V
Supports Hardware Data Compare?
Supports Per Cycle Configuration of Line Direction?
Supports Linking/Looping Segments?
