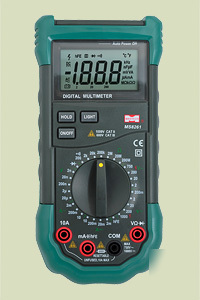

Mastech MS8261 digital electrical multimeter meter
MS8261 Mastech 3 1/2 Digital Multimeter Electrical Meter
Model No.: MS8261 Brand: Mastech
Conform to the IEC1010-1 standard CAT III 600V and CAT II 1000V
Automatic indication of functions and symbols
DC voltage: 200m/2V/20V/200V 0.5%, 1000V 0.8%
AC voltage: 2V/20V/200V 0.8%, 750V 1.2%
DC current: 2m/20mA 0.8%, 200mA 1.5%, 10A 2.0%
AC current: 2mA 1.0%, 200mA 1.8%, 10A 3.0%
Resistance: 200/2k/20k/200k/2M 0.8%, 20M 1.0%, 200M 5.0%
Capacitance: 2n/20n/200n/2 /20 F 4.0%
Weight: Approx. 380g (including battery)
