Lithonia KL100S hps rec low-mount site lighting fixture

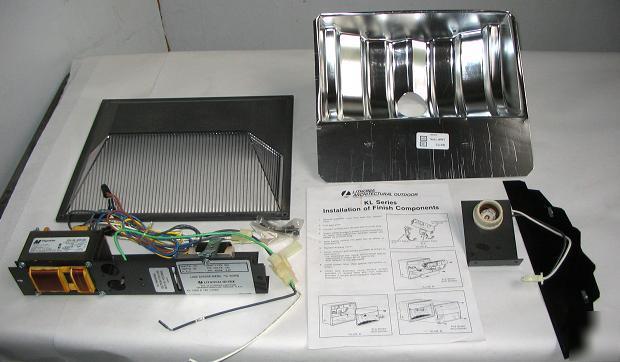

LITHONIA KL100S HPS REC LOW-MOUNT SITE LIGHTING FIXTURE
Use in site walls or stair lighting.
One-piece cast aluminum. (Alloy contains less than
0.2% copper. Integral splice compartment (46 cu. in.), (4)3/4" NPT
conduit entries. Hardboard cover protects interior until finish components
are installed. Clear, polyester powder coat adds further
Lens is one-piece, injection-molded, UVstabilized
polycarbonate, .125" min. thickness. Tooled-in, stippled
texture on non-optical portions. Die-cut, closed-cell, EPDM gasket.
Stainless steel, captive, Phillips-type fasteners. Tamper-resistant
fasteners also provided. Enamel finish on interior and exterior of nonoptical
portion. Dark bronze, acrylic, enamel finish is standard. Black,
white and natural aluminum finish also available. Optics are Onepiece,
hydroformed, aluminum reflector with anodized finish. Two
A provides uniformly symmetrical area lighting;
features unique bi-adjustable socket assembly which allows two
modes of field adjustment. Left or right directional throw can also be
field-adjusted up or down to maximize lighting distribution for stairway
High power factor, factory-tested. Removable,
unitized power module and positive locking disconnect plugs
(primary and secondary).Porcelain, horizontally-oriented, mediumbase
socket with copper alloy, nickel-plated shell and center contact.
UL listed 1500 watt - 600V, 4KV pulse-rated.
Recessed, concrete cast-in-place is standard. Optional
Product: HPS RECESSED LOW-MOUNT SITE LIGHTING FIXTURE
