Greenlee 640 power cable puller
Rope - Average Breaking Strength

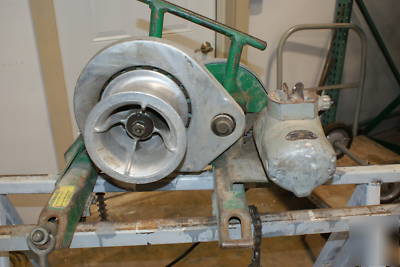

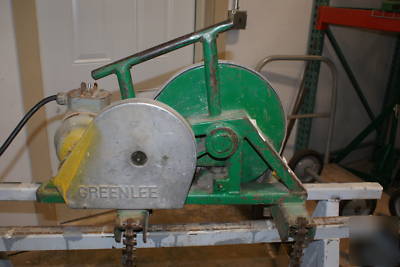

Greenlee 640 Tugger Cable Puller Power Unit with Vise Chains 4000 lbs. Greenlee 640 Specifications: Length: 21 Width: 21 Height: 12 Pulling Force Maximum: 4 000 lbs. Pulling Force Continuous: 2 500 lbs. Weight: 82 lbs. Pulling Speed at No Load: 35 fpm Pulling Speed at 2000 lbs. : 16 fpm Pulling Speed at 4000 lbs. : 6 fpm Power: 1 HP 120 VAC Rope Average Breaking Strength or More: 9/16 Double Braided Composite Rated at 16 000 lbs. Greenlee 640 Includes: Tugger Cable Puller: 4000 lbs. rated Includes power unit and vise chains Greenlee 640 Features: An economical puller with enough power for most jobs. Lighter weight for easier mounting in tough applications. Leaf type mounting chains won t twist when tightening. Unique floor mounting attachment for quick reliable setup. Right angle sheave allows the operator to stand out of the direct line of force. Audio alarm high force warning and circuit breaker shut off at maximum force for equipment protection and added safety. Tapered capstan and patented rope guidance system for better control of rope.
