230 gallon stainless steel tank
230 GALLON STAINLESS STEEL TANK

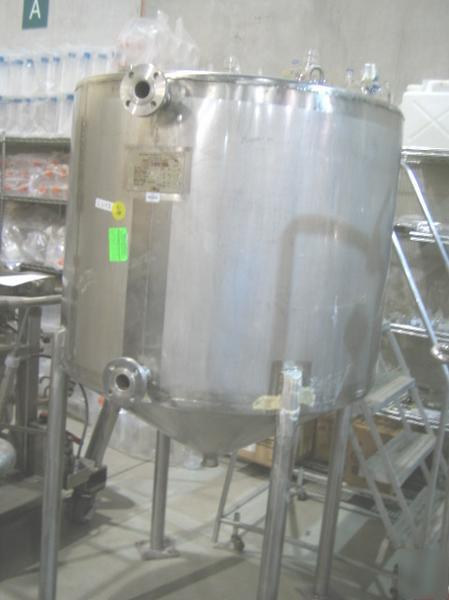

TCI SUPERIOR TANK WITH M.A.W.P. RATED ATM PSI AT 100 F. S/N-131-20, BUILT IN 1989. ALL STAINLESS STEEL CONSTRUCTION. UNIT IS EQUIPED WITH ONE 2" I.D. X 6" O.D. FOUR BOLT HIGH PRESSURE FLANGED NOZZLE, TWO 3.75" I.D. X 4.5 O.D. NOZZLES AND ONE .75" I.D. X 2" O.D. NOZZLE INLETS. THERE ARE TWO 1.5" I.D. X 5" O.D. FOUR BOLT HIGH PRESSURE FLANGED NOZZLES ON THE SIDE, ONE AT THE TOP AND ONE AT THE BOTTOM. THERE IS ONE 1.5" I.D. X 2.375" O.D. OUTLET NOZZLE MOUNTED IN THE CENTER OF THE CONICAL SHAPED BOTTOM. TANK DIMENSIONS ARE 42" DIAMETER X 34" STRAIGHT SIDE. 14" CONE HEIGHT AND 24" GROUND CLEARANCE TO OUTLET NOZZLE. UNIT IS MOUNTED ON FOUR STAINLESS STEEL LEGS WITH TWO BOLT MOUNTING FLANGES AND HAS TWO LIFT RINGS ON TOP OF TANK.
