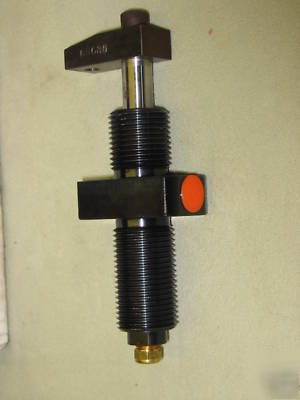

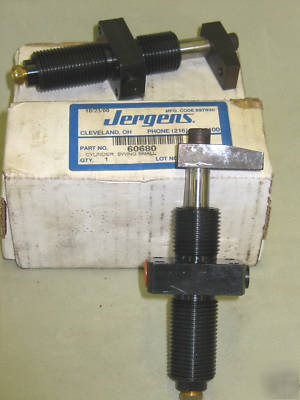

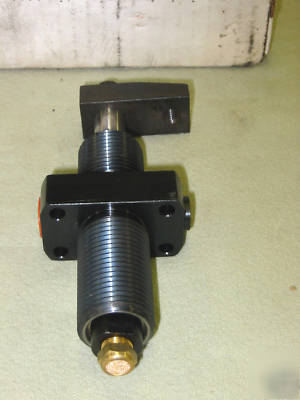

Hydraulic swing clamps, jergens #60680, 2PC lot
HYDRAULIC SWING CLAMPS, 2PCS LOT
RIGHT HAND SWING, BUT CAN BE SET UP FOR LEFT HAND IF NEEDED
CAN BE USED AS SINGLE ACTING SPRING RETURN OR DOUBLE ACTING
DIMENSIONS, OVER ALL HEIGHT WHEN OPEN, 5 3/4", WHEN CLOSED, 5", THREADS ON BODY ARE 1-12, FLANGE IS 1 1/8" X 2"

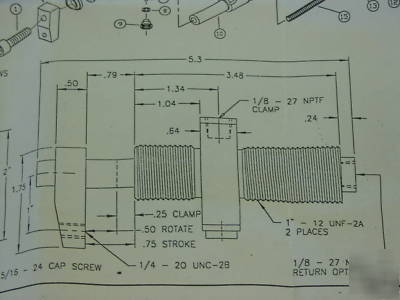

HEIGHT UNDER CLAMP ARM TO TOP OF FLANGE IS 1 15/16" WHEN OPEN, CENTER OF ROD TO CENTER OF CLAMPING SPINDLE HOLE IS 1". OTHER DIMENSIONS CAN BE SEEN IN PICTURES #5 & #6
COMES WITH INSTRUCTIONS FOR CHANGING SWING AND CLAMPING FORCE.
THESE CLAMPS HAVE NOT BEEN USED.
