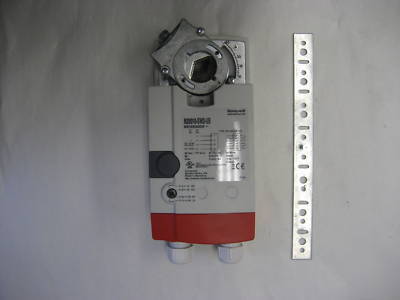

Honeywell MN7220A2205 non-spring return actuator
(0)2-10 Vdc,(0)4-20 mA Actuator - 175 lb-in, Non-Spring Return , 24 Vac +/-20%, 50 Hz, 60 Hz
Control for air damper applications with up to 50 sq ft assuming 3.5 in-lb per sq ft of damper area, velocity independent.
Patented self-centering shaft adapter.
Access cover to facilitate connectivity.
Declutch for manual adjustment.
Rotation direction selectable by switch.
Mechanical position indicator.
(0)2-10 Vdc (4-20 mA w/500 ohm resistor)
(0)2-10 Vdc (max. output: 1.0 mA)
Dual Integral Adj. Stops (3 degree increments)
8.78 in high x 3.62 in wide x 3.15 in deep
223 mm high x 92 mm wide x 80 mm deep
3/8 to 1.06 in. round or 3/8 to 11/16 in. square
10 to 27 mm round or 10 to 18 mm square
100K ohm (voltage), 500 ohm (current)
Enclosed screw terminal strip (22 to 14 AWG)
Integral 1/2 in. NPSM conduit connection.
