Porta~pull 1000XP wire/cable puller
View our other fine products on the web at
A COMPLETE 1000 POUND WIRE PULLING SYSTEM!
* CONVERTS EASILY FOR UP, DOWN & SIDE PULLS.
* POOL AND LIGHTING CIRCUITS

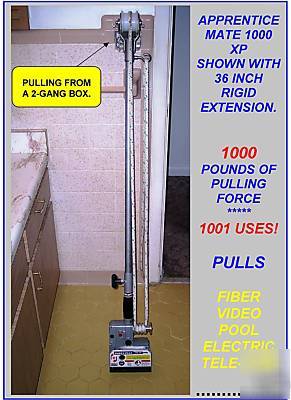

INTRODUCING THE ALL NEW APPRENTICE MATE 1000XP. Capable of extending up to 11 feet with 1 stick of 3/4"rigid conduit, the 1000XP is perfect for technicians needing a simple, yet effective method of pulling in wire runs from practically anywhere.

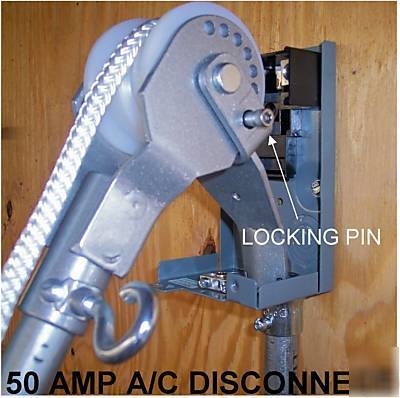

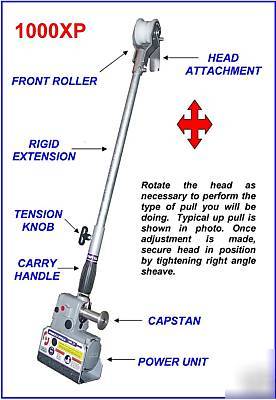

In fact, chances are...if you can see it, you can pull it! The Universal head design rotates a full 360 degrees to quickly accomodate UP-DOWN and SIDE pulls from single gang boxes, load centers, disconnects, wiring hubs, etc.
And with 1000 lbs. of pulling force, the 1000XP will quickly put the power of 3 men to work for you!
* Exclusive FasLoc Head....No Adapters needed!

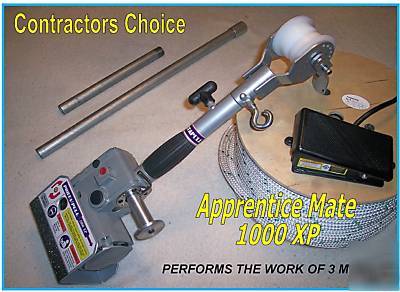

* Everything you need to make your next Pull a lot easier!
1HP single speed motor and gearbox.
Extends over 11 with 3/4" rigid conduit.
Remote foot switch included.
Will even pull from a single gang box.
12 & 24 Rigid extensions included.
Powder coated industrial finish.
Right angle sheave for operator safety.
Length: Compact-30 Extended-11 Feet+
Power: 1 HP (746 watts) 120 volts/8 amps.
Pulling force: 600 lbs Continuous.
Pulling speed: 50 feet per minute.
Recommended rope size: 1/4 or 5/16
4- #4 awg electrical cable 300' thru 4 x 90's.
Try one on your next job; you'll be glad you did!
View our other fine products on the web at:
For additional information on our products please contact
