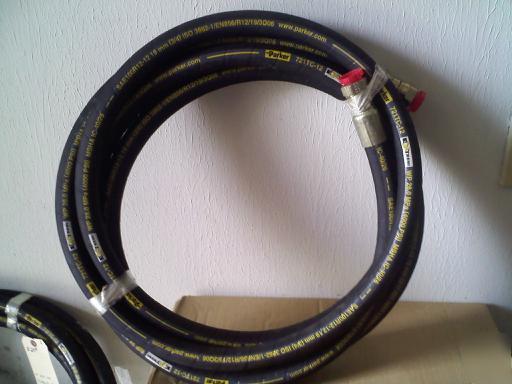

New parker parlock multispiral hydraulic hose
ISO 3862-1 standard type R12, EN 856 type R12 / 19mm (3/4")
Oil-resistant synthetic rubber inner tube. Four-spiral
high-tensile steel wire reinforcement, oil*- and weather resistant,
grey, MSHA approved synthetic rubber cover.
VS for external skive only for size -6 up to size -16
V4 for internal and external skive (Interlock)
Application and temperature range:
The hose is designed for use with:
petroleum base hydraulic fluids and lubricating oils
-40 C to +100 C (-40 F to +212 F)
water, water/oil emulsion and water/glycol hydraulic
air up to +70 C (+158 F), for air above 1,7 MPa the
* The hose is unsuitable for constant immersion in oil.
