LM4562NA dual hifi audio opamp authentic; LM4562 dip 8

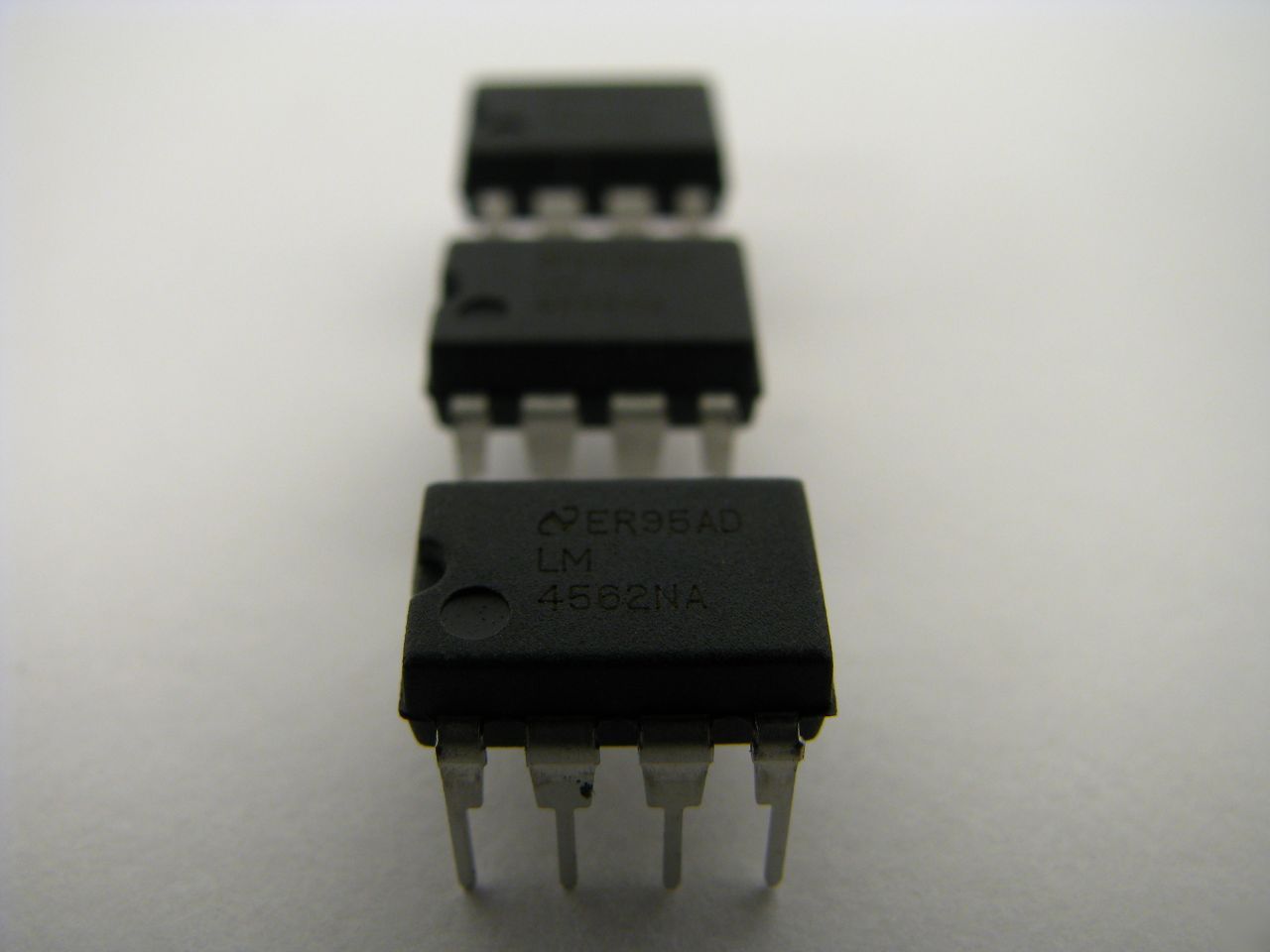

LM4562NA Dual HiFi Audio OpAmp AUTHENTIC; LM4562 DIP 8
The LM4562 is part of the ultra-low distortion, low noise, high slew rate operational amplifier series optimized and fully specified for high performance, high fidelity applications.
Combining advanced leading-edge process technology with state-of-the-art circuit design, the LM4562 audio operational amplifiers deliver superior audio signal amplification for outstanding audio performance.
The LM4562 combines extremely low voltage noise density (2.7nV/ Hz) with vanishingly low THD+N (0.00003%) to easily satisfy the most demanding audio applications. To ensure that the most challenging loads are driven without compromise, the LM4562 has a high slew rate of 20V/ s and an output current capability of 26mA.
Further, dynamic range is maximized by an output stage that drives 2k loads to within 1V of either power supply voltage and to within 1.4V when driving 600 loads. The LM4562's outstanding CMRR (120dB), PSRR (120dB), and VOS (0.1mV) give the amplifier excellent operational amplifier DC performance.
* Ultra high quality audio amplification
* High fidelity preamplifiers
* State of the art phono pre amps
* High performance professional audio
* High fidelity equalization and crossover networks
* High performance line drivers
* High performance line receivers
* High fidelity active filters
