JTAG10 parallel port jtag programmer for blackfin, arm

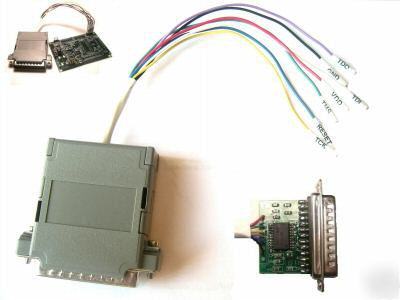

The JTAG10 is a parallel port JTAG programming adapter with individually identified wire strand flyleads. The JTAG10 buffers the PC parallel port lines from the the target device using an 74HC244. Power is source from the target - no external power supply is required. Target voltage can vary from 2.5 to 5VDC. Pinout if functionally equivalent to the Wiggler and is compatible with GNU JTAG PC tools such as gdb.

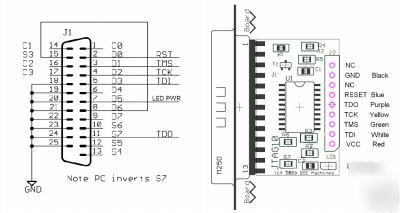

DB25 Pin JTAG Signal Color Direction
The JTAG10 can be used to debug the P1 ADSP-BF531/532/533 Blackfin processors, ARM Processors, Amber ATmega128 or other embedded processors such as ARM, PIC, etc.
For a JTAG10 datasheet: JTAG10 Datasheet.pdf
