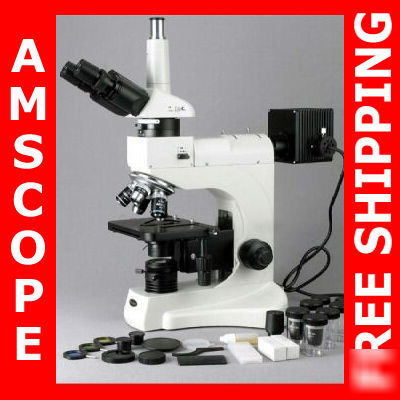

5M camera polarizing darkfield metallurgical microscope
Brand Name: AmScope Model No: ME500T-5M Retail Value: $10,000
SUPER HIGH QUALITY INSTRUMENT !
* An advanced metallurgical microscopy system with reflected and transmitted illumination
* A great metallurgical microscope with USB digital image system for both reflected and transmitted applications
* Built-in polarization system with polarizer and analyzer
* Built-in bright/dark viewing field system with conversion slide
* 5.0 Mega pixel high resolution with clear image
* User-friendly software included for capturing microscope images and displaying live videos on your computer screen
* Capturing microscope still images, editing images, recording video or saving them as BMP, TIFF, JPG, PICT,
* Displaying real-time live video
* Measuring length, angle, area and etc. across images
* Built-in reduction lens providing the same field of view images on your PC screen as those seen through eyepieces
* Quintuple nosepiece with three holes for bright field objectives and two for darkfield
* Seven infinitive PLAN Achromatic objectives included
* Eyepiece with 0.1mm micrometer and cross hair included
* 50 Watt halogen reflected EPI-illumination system
* 20 Watt halogen transmitted illumination system
* EPI-illumination filters included
* 30 inclined 360 rotatable compensation free trinocular head
* Ten levels of metallurgical magnification:
40X, 64X, 100X, 160X, 200X, 320X, 400X, 640X, 800X & 1280X
* Four levels of transmitted (biological) magnification:
* Co-axial coarse & fine focusing system
* Dual focusing control knobs.
* Eyepieces: WF10X and WF16X with 0.1mm micrometer and cross hair
* Nosepiece: quintuple nosepiece - 3 holes for bright field objectives and 2 holes for dark field objectives
* Objectives: infinitive Plan Achromatic objectives, 4X, 10X, 20X, 40X & 80X, for metallurgical applications and infinitive Plan Achromatic objectives, 40X &100X, for biological applications
* Polarization System: built-in polarizer and analyzer
* Bright/Dark Viewing Field System: built-in conversion slide for bright/dark field illumination
* Diaphragm: Epi-illuminator with iris aperture diaphragm and iris field diaphragm
* Stage: double layer mechanical stage with size 185X142mm
* Illumination Systems: 12V50W T-H lamp for metallurgical applications (intensity adjustable, lamp centering adjustable) and built-in 12V20W T-H lamp for biological applications (intensity adjustment)
* Collector: centering adjustable Kohler collector with field iris diaphragm.
Vertical Photo/Video Port: 23mm universal/standard photo tube (100%-0% or 20%-80%).* Power Supply: 110V (email for 220/240V version), CE certified
* One Trinocular Compensation-Free Infinity Microscope
* Two Pairs of Widefield Eyepieces, WF10X and WF16X, with 0.1mm Micrometer and Cross Hair
* Five Infinitive Plan Achromatic Metallurgical Objectives, 4X, 10X, 20X, 40X & 80X
* Two Infinitive Plan Achromatic Biological Objectives, 40X &100X
* Phase Contrast, Darkfield and All Other Accessories
* One 5.0 MP USB Digital Camera with Software and Driver
* Step-by-Step User's Instructions
* The accessories listed below are compatible with the above microscope. They can boost it with extra features. Click on the items you are interested in for details or purchase.
The accessories listed above are compatible with this microscope.
