Baileigh bs-350SA dual mitering semi-automatic bandsaw

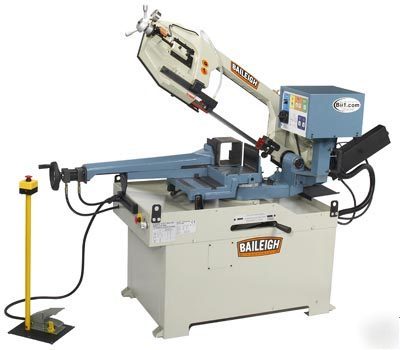

NEW Baileigh BS-350SA Dual Miter Band Saw
Capacity Round (90 /45 /60 /45 L) 10.63 /9.45 /6.3 /8.28
Capacity Square (90 /45 /60 /45 L) 10.24 / 8.66 /5.9 /7.09
Capacity Rectangular (90 /45 /60 /45 L) 13.77 x8.66 /9.45 x6.3 / 7.3 x4.33
Blade Size (H/W/L) 1 / .035 / 124.5
* Dual descent modes: 1 -Manual descent mode is operated by pulling down on handle and actuating trigger switch. 2- Hydraulic descent feed can be adjusted by operator.
* Powerful coolant pump cools blade and assists chip removal system. We recommend using a petroleum or synthetic based coolant mixture that is typically mixed with water in a 1:10 ratio.
The BS-350SA series band saws hydraulic descent has a down feed adjustment for feed pressure. The saw head is automatically lifted when the cut is complete and is ready for the next cut. The hydraulic descent has a down feed adjustment for feed pressure. This metal band saw can cut up to 8-1/2"x13-3/4" rectangle. This model has service requirements of 220V, Single Phase, 60 Hertz. The BS-350SA horizontal band saw has a dual swiveling miter head, allowing the operator to miter 60 degrees in one direction and 45 degrees in the other direction. This series of horizontal band saw comes standard with a variable speed drive allowing the operator to fine tune the blade speed from 114' to 262' / min. The BS-350SA metal cutting saw requires a 1" wide saw blade by .035" wall thickness that is 125" long, making this series a very precise miter saw.
