> Agilent E1708A use with the agilent 10897B
Agilent E1708A use with the agilent 10897B
For use with the Agilent 10897B
is designed for use in the most
demanding applications requiring
measurements of systems in motion.
The receiver extends the performance
Laser Axis Board for VMEbus by
consistent with the high resolution
The E1708A uses an optical fiber
electronics. The E1708A improves
repeatability by enabling you to
mount heat dissipating electronics
away from the measurement area.
The fiber optic cable also allows
mounting design flexibility and
attenuation and squelch adjustments.
As the Doppler shift caused by
motion of the system stage changes
the measurement frequency, the
processing errors. The receiver
also provides immunity to errors
induced by changes in measurement
2.2 W (E1708A with 2-m cable,
The E1708A is self-aligning when
the remote sensor is mounted to the
following optics: Agilent 10715A,
10716A, 10717A, 10719A, 10721A,
Dopplershifted frequency (100 kHz
Fixed Data Delay: 86 ns (typical)*
Errors due to frequency variations
and 3:1 amplitude variations:*
0.3 nm for high resolution optics
0 8 volts proportional to optical
15 Vdc 1 V at less than 250 mA
26 g (0.9 oz) for remote sensor

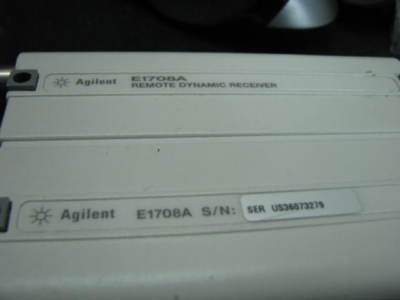

Agilent E1708A Remote Dynamic Receiver
Agilent E1707A and E1708A Dynamic Receivers provide more accurate positioning
