Digital insulation tester meter megger megohmmeter 1 kv

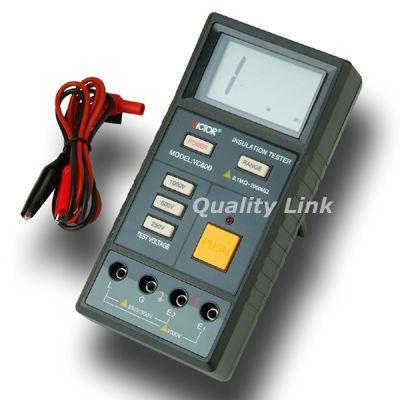

Digital Insulation Tester Meter Megger Megohmmeter 1 kV
Brief Description: The Digital Meg-Ohmmeter (VC60B) instrument uses lower power consumption, high change rate, inductance energy-DCV converter, change 9 V to DC 250 V / 500 V / 1000 V. Also, it uses digit-bridge resistance measurement for measuring electric insulation resistance. Features:
* High stability and reliability
* LCD display for low power consumption and clear readout
* Light weight and compact construction for easy operation
* Auto power off and asleep mode
* Display: 60 x 32 mm (2.36 x 1.26 inch) large window LCD with maximum reading of 1999
* Over range indication: MSD "1" display
* Power supply: One 9 V PP3 Battery
* Power Consumption: unload consumption is less than 300 mW.
* Operating Temperature: 0 ~ 40 C
* Operating Humidity: 30% ~ 85% RH
* Dimension: 80 (W) x 185 (L) x 45 (H) mm (3.15 x 7.28 x 1.77 inch)
* Weight: approx. 360g (including 9V battery)
Note: Median resistance ensures that two terminal voltages is not less than 90% of test voltage of low terminal limit value of measure resistance. One Set Included:
* 2 x Measurement cables with Clips
