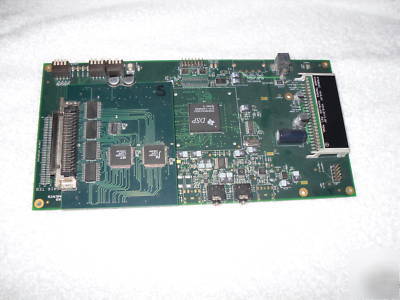

Texas instruments ti TMS320C6414 dsp &gpib daughtercard
The C6416 Test Evaluation and Board (TEB) product bundle is available as an immediate evaluation vehicle for TI s high-performance TMS320C6416 fixed-point digital signal processor (DSP). The C6416 TEB provides an early development platform for you to evaluate the characteristics of the TMS320C6416 DSP to ensure that it meets your application requirements.
* Board dimensions: 4.5 in. x 9.0 in.
- CPLD - Altera CPLD EMP3128ATC100
- Codec - Burr-Brown PCM3002E
- Flash - AMDAML9LV400BT, 512B x 8, configured for ROM boot operation
- SDRAM - two Micron 48LC2M32B2TG-6, 2M x 32
* 14-pin JTAG header - for emulation
* On-board power regulation - LDO regulators for 3.3V and 1.2V (variable regulation). Default at 1.37V
* 500-MHz C6416 DSP capable of executing 4000 million instructions per second (MIPS)
* Two External Memory Interfaces (EMIFs); 64-Bit EMIFA and 16-Bit EMIFB
* 16M bytes of 133 MHz synchronous dynamic random access memory (SDRAM)
* 512K bytes of flash programmable and erasable read only memory (ROM)
* Connections for external emulation hardware support (e.g., XDS510)
* Four user-defined memory-mapped switches
* Four user-defined memory-mapped LEDs
* Expansion memory and peripheral connectors for daughter card support
* Onboard switching voltage regulators for 1.4 volts direct current (VDC) and 3.3 VDC
* TMS320C6416 DSP Test Evaluation Board (TEB)
* NOTE: Power Supplie is not included as i am unable to find it (it is a standard +5V (5A) output one)
* NOTE: In order to interface with this card you will need a TI XDS510 PP+(and above) JTAG which is not included
