Cutler hammer CRD320T35W 2000 amp breaker panel cabinet

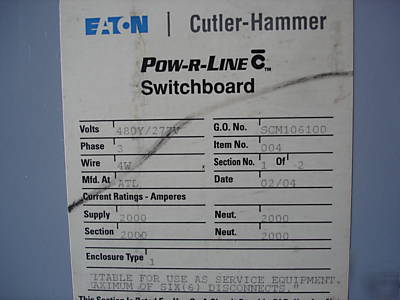

Cutler Hammer Pow-R-Line Switchboard Panel with CRD320T35W 2000 amps 600v Circuit Breaker & IQ DP-4000 Microprocessor-Controlled Electronic Metering and Protection
(Manufacturer's New List Price for CRD320T35W Breaker is $33,516.00)
This panel and breaker are in GOOD Used Condition... Save $$THOUSANDS.

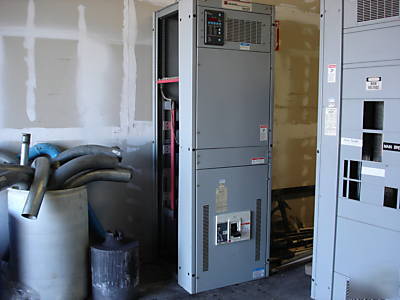

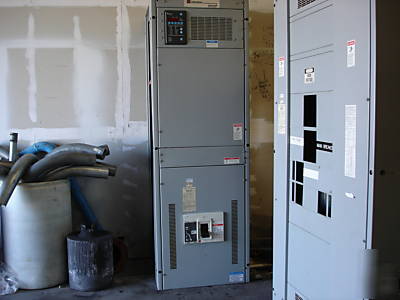

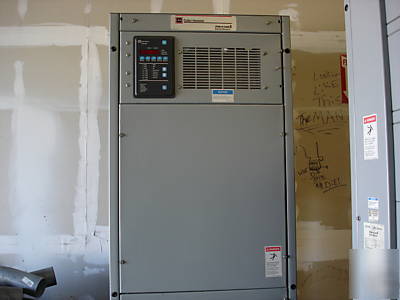

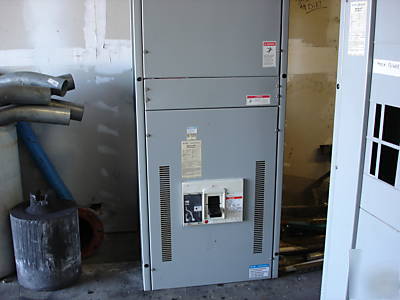

Tall Pow-R-Line C Cabinet Enclosure

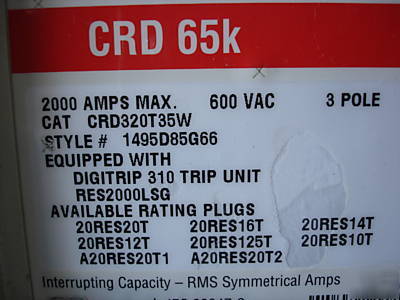

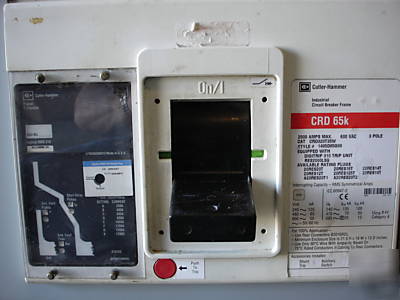

Cutler Hammer CRD320T35W Specifications:
ELECTRONIC, MOLDED CASE; CRD FRAME; 600 VAC AT 50/60 HZ; 2000 AMPERE AT 40 DEG C; 3 POLE; INTERRUPTING RATING 125 KILOAMPERE AT 240 VAC, 65 KILOAMPERE AT 480 VAC, 50 KILOAMPERE AT 600 VAC (UL/CSA); TERMINAL NOT INCLUDED; SIZE 15.5 INCH W X 9.75 INCH D X 16 INCH H; CRD MODEL; APPLICABLE STANDARD IEC 157-1; TRIP MODEL 310, TYPE LSG

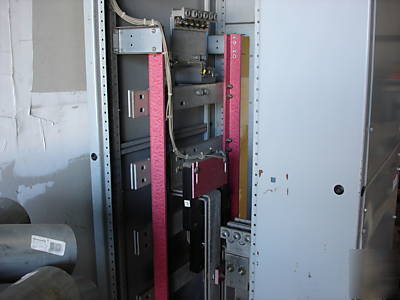

Cabinet is missing the side panel as shown in photos.
View Cutler Hammer CRD320T35W
152 pounds. (Breaker weight only - Cabinet and IQ DP-4000 are additional weight)

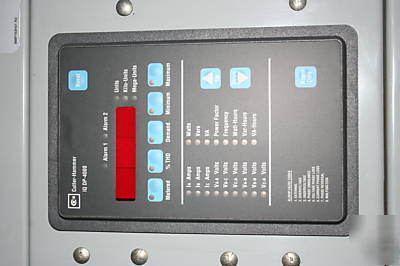

IQ DP-4000 General Description
The IQ DP-4000 is a microprocessorbased monitoring and protective device that provides complete electrical metering and system voltage protection. In one compact, standard package the IQ DP-4000 will provide an alternative to individually mounted and wired conventional meters and switches. The new DP-4000 also monitors Apparent Power (VA), Reactive Energy (Var-Hours), Apparent Energy (VA-Hours), and percent THD to provide the user with basic power quality information.
The IQ DP-4000 meets and surpassesUL/CSA/CE standards. The IQ DP-4000 s rugged constructionis designed to withstand harsh conditions such as temperature variations, outdoor applications, and industrial environments. The membrane faceplate pushbuttons are easy-to-use and both the parameter LED and window displays are easily visible.
