*four* warn works 1700 dc powered utility winch 651700

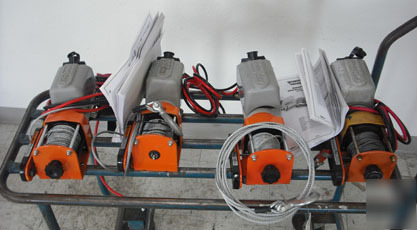

*FOUR* WARN Works 1700 DC Powered Utility Winch 651700
*LOT OF 4* WARN Works 1700 DC Powered Utility Winch 1.6HP 12v
With a pulling capacity to handle loads up to 1,700 lbs., the new generation of the WARN Works 1700 is the perfect entry-level DC-powered winch for smaller capacity jobs.
Upgraded features of this newly-redesigned model include a built-in tension plate to help keep the wire rope tightly wound on the drum; tie-rods for added strength and stability, plus a new handheld remote that controls power-in and power-out functions. A restyled clutch knob engages with a pull and a turn for effortless free spooling, and a self-locking brake holds full rated loads. An efficient 1.6hp motor requires minimal amp draw.
* Pulling Capacity: 1700 lbs (772 kg)
* Switch Type: Remote with 12' (3.7 m) lead
* Motor: Permanent magnet, 3.0" diam.
* Gear Train: Split Ring Gear
* Clutch: Knob-pull and turn
* Brake: Self-locking gear train (rated load holding)
* Wire Rope: 3/16" x 35' (10.7m)
* Drum Diameter: 1-1/8" (2.85 cm)
* Hole Pattern: 2 holes on 3.1" (7.87cm) center
* Electrical Leads: 2 - 6' (1.8m) x 6 gauge cable
