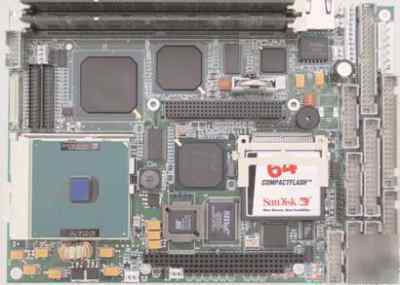

Tme 5825 lv-rc-A47 single board computer embeded ebx
Ultra low power, Passive Heat Sink for CPU up to 900 MHz
17W (900Mhz CPU, 256K L2 cache)
168-pin DIMM SDRAM up to 512 MB
CF- Flash Disk (up to 1Gbytes)
10/100Base-T Ethernet interface
6 serial ports, dual USB, 256 Bytes EEPROM, 64-bit unique electronic ID
Intelligent thermal management with independent microcontroller
Supports DOS, Windows 98, NT, 2000, XP, CE, QNX, pSOS, Linux, VxWorks
Socket 370 supports ultra low power Intel Tualatin processor (0.13 micron
technology) Celeron and Pentium III with low core voltage
L1 Cache - 16 KB instruction, 16 KB write-back data
L2 Cache - 256-KB for Tualatin Celeron CPU, 512K L2 cache for Tualatin Pentium III CPU
Passive heatsink for 500 MHz and 900 MHz processor (with 100LFM air flow)
Intel 440BX embedded chipset, Super I/O FDC37B787 and B69030 video chipset
Intelligent Thermal management Temperature and fans controller
Onboard independent microcontroller is used to monitor processor and system temperatures
The parameters are then used to adjust CPU and system fan speed to maximize their life
It can also adjust the CPU load to maintain the CPU temperature within a specific limit
End user can change the CMOS setup to set all of the above parameters. This feature is very
useful especially in the event of a CPU or system fan failure.
Designed for embedded applications with 3 second boot up time with integrated video
Support for many LCD panels. CMOS setup is stored on EEPROM to prevent system failure due
Two 168-pin DIMM for up to 512 MB 3.3V SDRAM (PC-100 or PC-133)
Compact Flash socket for on-board flash disk up to 1 GB
Chips & Technologies 69030 with 4 MB VRAM built-in
CRT mode up to 1280 X 1024 @ 24-bit color resolution
LCD mode up to 1024 X 768 @ 24-bit color resolution
Supports LCD/TFT/STN/EL 3.3V or 5V displays
10/100 Base-T using Intel 82559ER Fast Ethernet controller.
Integrated dual channel enhanced IDE interface.
Support for up to four IDE devices.
Support for Ultra DMA/33 synchronous DMA mode
One 34-pin connector, supports two floppy drives
RS-232, 16C550 compatible, 115K baud max,
RS-232, 16C550 compatible, 115K baud max
LPT Interface Bi-directional/EPP/ECP compatible
Electronic ID, Digital I/O (8/8)
Voltage monitoring reset circuit
Power management logic support
Programmable Watch Dog Timer 2s to 120s
CMOS setup data stored on serial EEPROM to support batteryless boot capability
128 Bytes EEPROM available for OEM use
ESD protection on serial ports: 15,000V
