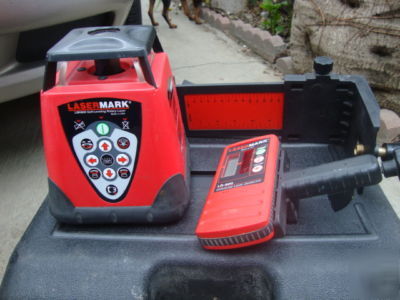

Lasermark LMH600 self-leveling rotary laser
* Dual beam 635nm visible red laser diode; Horizontal and vertical plumb
* Anti-Drift System signals operator when unit is moved out of position; Helps prevent error
* Dual Axis Manual Grade up to 10% (on level surface)
* Scanning Feature Preset Angles of 10 , 45 , 90 and 180 to increase Beam Visibility
* Variable Speed Rotation for Maximum Visibility in Any Light Condition
* Clock-wise and Counter-clock-wise Head Positioning for fast and easy alignment in vertical/horizontal applications
* Automatic / Manual Mode with Manual Grade / Slope Setting Buttons
* Battery Level Indicator - so you don't run out of power at the wrong time
* No Bubble Required - wide self- leveling range of 5 (1 per second in horizontal mode)
* Pro Grade Motorized Electronic Horizontal and Vertical Self- Leveling for speed and convenience
* Heavy Duty Glass enclosed beacon and sealed housing is water/ dust-proof (IPX7) to ensure years of dependability
Leveling Accuracy: 1/8" at 100 feet
* Recommended Working Range: 200' (60m) diameter, Up to 2000' (305m)diameter with laser detector
* Manual Grade (Dual Axis): up to 10%
* Laser Diode: 635nm visible red diode
* Dual Beams: Horizontal & Vertical Plumb
* Horizontal & Vertical Self-Leveling Range: 5
* Self-Leveling Speed: 1 /4 sec. (approx.)
* Short Sweep and Long Sweep: features are standard for interior jobs.
* Dimensions: 8" h x 6-1/4" w x 6-3/8" d (203mm x 159mm x 162mm)
* Weight: 5.5 lbs. (2.5kg) with batteries
* Power: Four (4) D cell Alkaline batteries or rechargeable battery pack (Optional)
* Battery Life: 75 hours intermittent use with Alkaline batteries (variable with temperature); 25+ hours use with fully charged ni- cad battery pack (Optional)
* Rotation Speed: Variable speed 0 RPM/150 RPM/300 RPM/600 RPM
* Operating Temperature: 22 F to 120 F (-6 C to 49 C)
IT COMES WITH CASE, UNIVERSAL LASER DETECTOR LD-400 TARGET AND WALLMOUNT
