Datacom lancat v tester cat 5 ADSL2 ethernet test

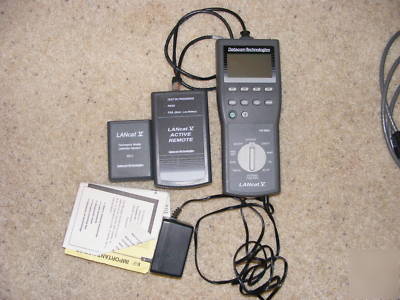

Used But in great condition datacom Technologies lancat V Cable tester with remote and calibartion adapter, and charger.
* CABLE TESTS:The LANcat V certifies UTP and STP to EIA/TIA Standards. It also certifies coaxial, UTP and STP to IEEE and EC/ISO requirements. Tests performed include:
1. Cable Length (via TDR)
3. Near End Crosstalk (NEXT)
5. Attenuation-to-Crosstalk Ratio (ACR)
8. Traffic (Ethernet Only)
9. Characteristic Impedance
* LANCAT V CABLE TEST STANDARDS
* EIA / TIA-568 Cat 3 UTP
* EIA / TIA-568 Cat 4 UTP
* EIA / TIA-568 Cat 5 UTP
* ISOIIEC 11801 Class CID
* Range: 4000ft (1220m) Coax, 3000ft (915m) UTP & STP
* Accuracy: +\- 2ft (0.6m), 0-200ft (60m), +\- 1%, 201-4000ft (61-1220m)
* NVP (Nominal Velocity of Propagation): 0.50c to 0.99c, factory settings adjustable by the user.
* Cable Fault Types: Shorts, Opens, Intermediate Impedance Anomalies.
* Number Of Faults: End Of Cable and two Intermediate Anomalies.
* Fault Threshold. User defined, 4% to 10% (7% default).
* CALIBRATE NVP (Based on cable of known length)
* WIRE MAPPING (Twisted Pair Wiring Only) Displays Following Errors: Miswired Pairs, Shorts, Opens, Shorted Pairs, Crossed Pairs and Split Pairs. Includes test of shield.
* NEAR-END-CROSSTALK (NEXT) (Tests all six pair combinations)
* Frequency Range: 0.77MHz to 10OMHz
* Measurement Range: 0 to -6OdB
* ATTENUATION (Tests all four pair combinations one way)
* ATTENUATION-TO-CROSSTALK RATIO: ACR is calculated for each pair over the full frequency range per test specification selected.
* RESISTANCE: DC resistance of each conductor is measured.
* IMPULSE NOISE: Counts impulse noise hits above user defined threshold.
* Threshold.- User defined, 1OOmV to 5OOmV peak (26OmV default)
* Other Features: Continuous bar graph to display activity.
* CHARACTERISTIC IMPEDANCE: (Measured for each pair using a TDR pulse.)
* NETWORK INTERFACE: Connectors:
* Options: RJ45 female, BNC coax or STP (IBM Type 1)
* Cable and Connector.- DB-9
* Baud rate: 300 to 38,400
* Protocol: Parity - Even, Odd, None
* Flow Control: Hardware and Software
* Standard: Eight AA Alkaline Batteries
* Option: Nickel Metal Hydride pack
* Battery Life: 8 hours typical use.
* Low Battery Indicator. Audible alarm plus LCD display.
* Automatic Power-down: 30 seconds to 10 minutes of inactivity (selectable).
* Display. 128 x 64 pixel backlit graphic LCD
* Operating Controls: 10 position rotary function selector.
* Keypad: Elastomeric, dedicated functions, and 4 soft functions.
* Audible Alarm: Operator Enabled/Disabled
* Memory. Storage space for 500 test results.
* Imprint. Date and time on all tests
* Non-Volatile Memory. Lithium battery backed memory for setup, test results and NVP values.
1. RJ45 plug connector adapter
3. Batteries, 1 set, installed
4. Battery eliminator, AC adapter
9. Certificate of calibration
1. Adapter kit, Token Ring
2. RJ45 jack connector interface
5. BNC cable, 5OL2, 3 ft. long
6. BNC terminator, 50 ohms
7. Adapter, BNC to Type N for testing 1OBase5
8. NIMH rechargeable battery pack
9. IBM Type 1 accessory kit
10. 110 block connector interface
