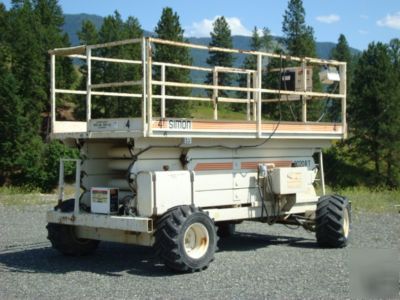

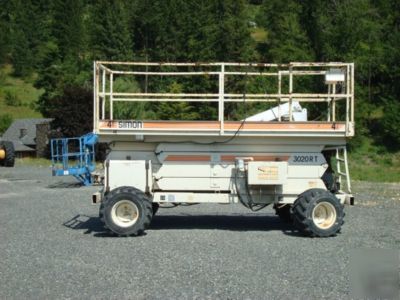

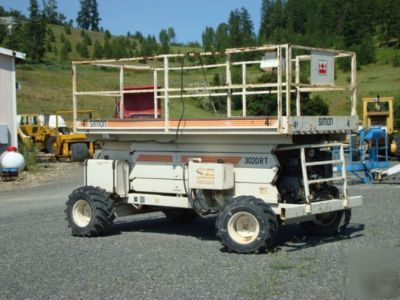

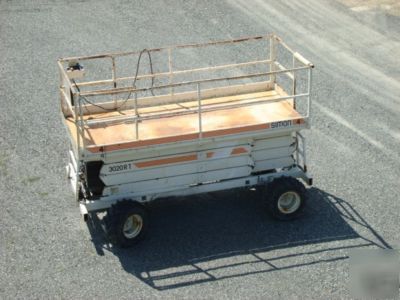

3020RT scissor lift simon

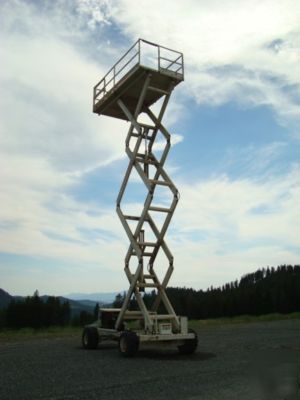

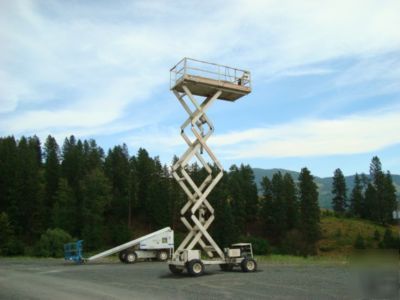

Working Height .. . ..37 ft / 11.28 m
Platform Height . 31 ft / 9.45 m
Without Rails .. .. .65 in /1.65 m
With Rails . ..107 in / 2.72 m
Platform Capacity (Evenly Distributed):
With Standard Deck . ..2,000 lbs / 907 kg
With Traversing or Roll-Out Deck (Optional) ...1.500 lbs / 675 kg
With Standard Deck 76in x 160 in / 1.93 m x 4.1 m
Guard Rail Height ...42 in /1.07 m
Toe Board Height ...6in / 15.24 cm
Roll-Out Deck (Optional) .. . 3 ft / .91 m
Length . ....13 ft 8 in / 4.17 m
Width . ..8 ft 3 in / 2.52 m
Wheelbase . .. 9 ft 9 in / 2.97 m
Wheel Track . . ..7 ft 1 in / 2.16 m
Inside Turning Radius . 13 ft / 3.96 m
Outside Turning Radius .. .22 ft / 6.71 m
Ground Clearance ....10 in / 25.4 cm
Weight (Approximate) .6.855 lbs / 3109 kg
Drive System Dual Range Proportional
Drive Speed (Platform Elevated) .0.8 mph / 1.29 kph
Drive Speed (Platform Lowered) .2.7 mph / 4.35 kph
Lift / Lower Speed (Approximate) ..32 / 40 sec.
Gradeability (on hard surface) .15 deg. / 27 %

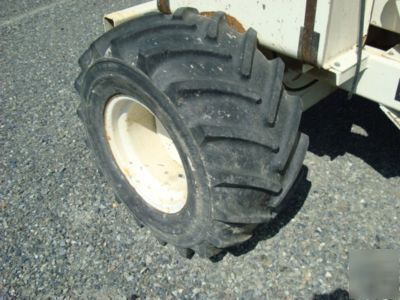

Tire Size 31.5 x 15.5 STG
Tire Pressure (not applicable to foam filled tires) 45 psi / 3.10 Bar
Wheel Lug Nut Torque .90 ft lbs / 122 Nm
Power Wheel Mounting Bolt Torque 120 ft lbs / 162.72 Nm
Hydraulic Operating Pressure ...2900 psi / 189.61 Bar
Hydraulic Fluid Capacity ..28 Gal / 106 liters
Fuel Capacity .24 Gal / 91 liters
Power System ...12 Volt
Alternator ..37 amp
Diesel . Isuzu 3KR1
