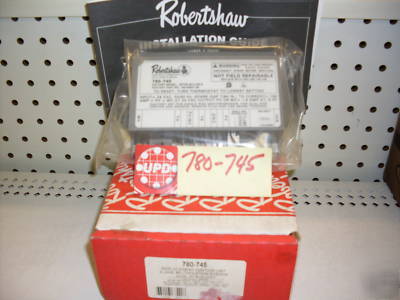

Robertshaw 780-745 universal ignition module
* FOR "LOCKOUT" APPLICATIONS
* COMPLETE IN-DEPTH INSTRUCTIONS
THIS KIT HAS A LOCKOUT FEATURE TO SHUT OFF
ALL GAS TO THE FURNACE, SHOULD PILOT IGNITION FAIL TO OCCUR
AFTER A PREDETERMINED TIME PERIOD. THE 780-745
PROVIDES 3 TRIES FOR IGNITION, EACH IGNITION PERIOD IS 60 SECONDS
FOLLOWED BY A 5 MINUTE TIME DELAY BETWEEN IGNITION ATTEMPTS.
AFTER 3 TIMES IF NO PILOT FLAME IS SENSED, UNIT GOES INTO LOCKOUT
AND MUST BE RESET AT THE THERMOSTAT.
