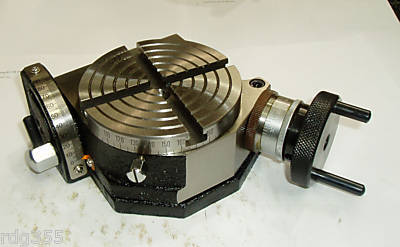

Rdgtools 100MM tilting rotary table with 4 tee slots
THE TABLE TILTS UPTO 90 DEGREES AND CAN BE USED ANYWERE ALONG THE SCALE
BASE IS 145MM X 126MM WITH TWO 10MM MOUNTING HOLES SEPERATED BY 110MM,
STANDS 66MM TALL (IN FLAT POSITION),
TABLE DIAMETER 100MM, WEIGHT 4.9KG. TABLE IS GRADUATED 0-360 DEGREES IN 5 DEGREE DIVISIONS,
WINDING HANDLE IS GRADUATED 0-10 DEGREES IN 5 MINUTE DIVISIONS,
TABLE SURFACE HAS FOUR RADIAL T-SLOTS 5/16" WIDE,
UNIT WELL SUITED FOR MODEL ENGINEERING APPLICATIONS,
SMALL ENOUGH TO BE MOUNTED ON SMALL MILLS OR ON A LATHE VERTICAL SLIDE OR CROSS SLIDE.
THE ABOVE IS SET AT 45% AND IS FITTED WITH A 3 JAW CHUCK
THIS PICTURE IS FOR ADVISE ONLY , AND SALE DOES NOT INCLUDE CHUCK
OR SEE OUR OTHER 1300 OTHER ENGINEERING TOOLS
PLEASE PHONE ANYTIME OUR SHOP AT 01422-885069
