Leeson woodworking electric motor - 1 hp # 110142.00
Leeson Woodworking Electric Motor - 1 HP # 110142.00

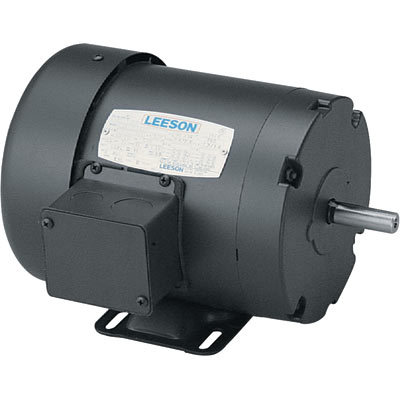

This Leeson 115/208-230 Volt, 1 HP totally enclosed 3450 RPM motor is designed for table saws, planers and more. UL and CSA recognized. Totally enclosed design prevents motor problems caused by wood dust and shavings. U.S.A.
Image representative of product only; 1 HP model comes with one capacitor. HP: 1, Rated RPM: 3,450, Volts: 115 / 208-230, Amps: 6 at 230V, Hertz: 60, Motor Phase(s): Single, Shank Diameter (in.): 5/8, Shank Length (in.): 1 7/8, Frame Type: NEMA 56, Rotation Direction: Clockwise or counter clockwise, Reversible: Yes, Totally Enclosed Housing: Yes, Manual Overload Protection: Yes, UL: Recognized, CSA: Recognized
* Fully gasketed, double-sealed ball bearings
