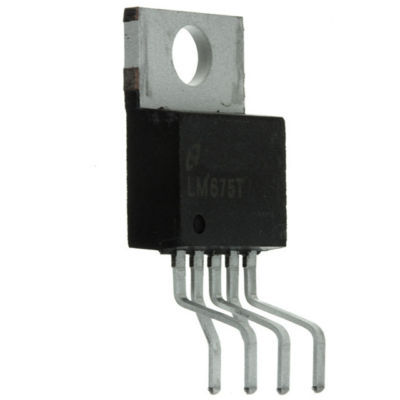

LM675 power op amp 60V 3A 20W rms low thd 5.5MHZ gbp X4
50W rms, 60V, 3A , 5.5MHz gain bandwidth, 70KHz power bandwidth.
As an audio amplifier, can deliver 20Wrms into 8 ohms with 0.018% total harmonic distortion and low noise of 16nV/sqrt Hz.
Make simple, accurate current limited, DC Lab power supplies.
Output power buffers for function generators.
How to build higher power amplifiers using multiple chips.
