#7124 - sundstrand electromill simplex production mill

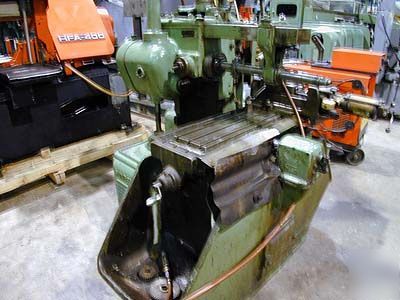

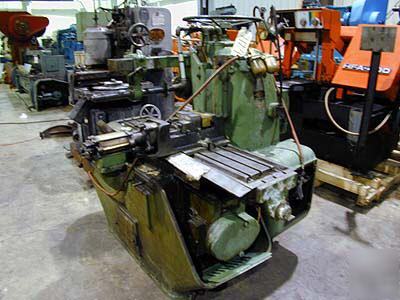

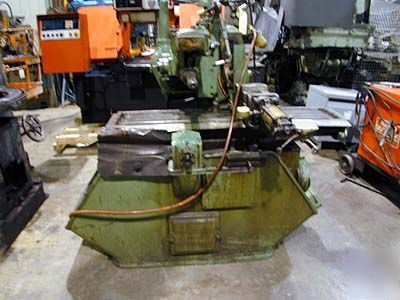

SUNDSTRAND NO.2 ELECTROMILL SIMPLEX PRODUCTION MILL
Table Working Surface 7-1/2"x 48"
Feed Range (27) 1/2" to 20" IPM
Rapid Traverse Rate 400" IPM Spindle Speeds 46 - 629 RPM
Cross Adjustment of Spindle 2"
Vertical adjustment of spindle 8-1/2"
. Diameter of Spindle nose 3-1/2"
Floor Space 57" F-B, 88" R-L, 64" High
5 HP 3/60/220/440 Main Spindle Drive Motor
3/4 HP 3/60/220/440 Feed Motor
1/4 HP 3/60/220/440 Coolant Pump Motor
