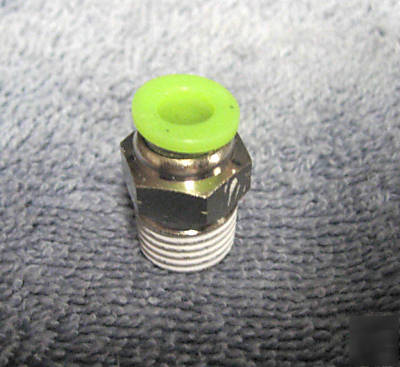

New push to connect fitting male 1/4 tubing to 1/4NP
This Listing is for one (1) push to connect 1/4" Tubing to 1/4NP connector. These have many applications including CO2 Throttle systems for drag race cars, robotics, Pneumatic devices, etc.
- Convenient One touch fittings provide instant tubing connections
- Elliptical release ring facilitates pneumatic installations in confined spaces.
- Light manual pressure on the elliptical release ring is all that is required to instantly disconnect each tube-no special tools required.
- Nickel-plated brass threaded bodies ensures anti-corrosion and anti-contamination.
- All NPT & R(BSPT) thread are pre-coated with Teflon sealant and require no additional sealing.
- Most all models available in inch and metric size.
Working Pressure Range 0~150PSI 0~9.9KgF/cm2(0~990KPa)
Negative Pressure -29.5 in Hg -750mm Hg(10 Torr)
Working Temperature 32~140F 0-60C
Recommended tube material Nylon and Polyurethane
