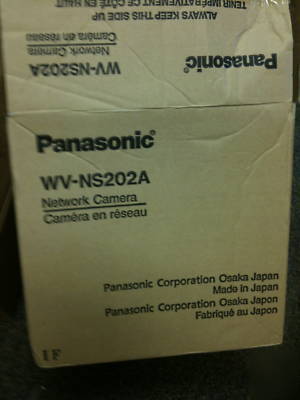

New panasonic wv-NS202A i-pro network camera sealed

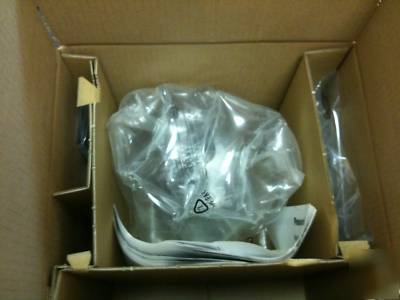

BRAND NEW IN ORIGINAL BOX, NEVER TAKEN OUT OF THE PACKAGE.
MPEG-4 and JPEG digital signal output at VGA image size with up to 30 ips MPEG-4/JPEG dual stream output for simultaneous real time
monitoring and high resolution recording Progressive output with motion adaptive interlace/progressive conversion
allows every frame to be clear even when the object is moving. Super Dynamic III technology delivers 128x wider dynamic range
compared to conventional cameras. High sensitivity with Simple Day/Night function: 0.7 lux (Color), 0.5 lux (B/W) at F1.6 Electronic sensitivity enhancement: Auto (Up to 32x) / OFF VMD (Video Motion Detector) with 4 programmable detection areas and 6 sensitivity levels Meta data for VMD is supplied to work with the WJ-ND400 playback VMD function. 22x zoom lens: 3.79 ~ 83.4 mm (approx. 220x with digital zoom) Auto tracking: Pan and tilt automatically controlled to keep moving objects centered in screen. PTZ control can be taken on the user friendly GUI with 16 speeds
pan/tilt and new Drag and Zoom operation enabling finer control.
256 speeds available for system with WV-CU950 system controller. Up to 64 preset positions 360 map shot: 8 thumbnail images at 45 deg. intervals make it
simple to direct the camera easily by clicking on a thumbnail. Built-in network interface (10Base-T / 100Base-TX) Power over Ethernet (PoE) IEEE 802.3af. Multiscreen: Image from 16 cameras can be displayed in 4 different
Quad screens or 16-screen (JPEG only) FTP client function enables periodic image data transfer or transfer upon alarm Alarm notification via e-mail Max. bit rate/client (64 / 128 / 256 / 512 / 1,024 / 2,048 / 4,096 kbps)
or frame rate priority mode (4,096 kbps / Unlimited) for MPEG-4 and Total bit rate control (64 / 128 / 256 / 512 / 1,024 / 2,048 / 4,096 kbps / Unlimited) allowing flexible network management.
Full duplex 2-way audio feature (G.726, 32/16 kbps) Alarm log, Manual REC log, FTP error log saved in the SD card is
displayed on the browser GUI and can be downloaded to the client PC. Playback or Image data download through the log is also available.
Internet mode: MPEG-4 images can be transmitted over HTTP protocol. Multi-language GUI and setup menu: English, French, Italian, Spanish, German, Polish, Russian (PAL) / English, French (NTSC) * Installation required except for English SD Memory card slot for Manual recording, Alarm recording and Backup upon network failure.
Alarm sources include Terminal 1 ~ 3, VMD and Panasonic alarm command. Selectable alarm actions include SD memory recording, FTP image transfer, E-mail notification, Alarm indication, Terminal output, Camera positioning, Auto track and Panasonic protocol output.
Scheduling function for Alarm / VMD / Access permission, Preset position call and Position refresh Industrial grade Pan/Tilt/Zoom mechanism for high reliability One-touch Fitting Mechanism for easy installation Desktop/Ceiling position choice and various optional brackets for versatile installations
