New klockner-bartelt clutch brake control digital

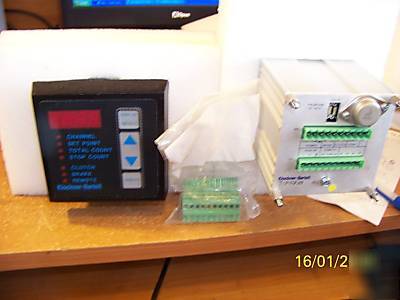

YOU ARE GETTING ONLY ONE UNIT. I HAVE 2 PICTURED HERE TO SHOW THE FRONT AND BACK VIEW OF THE ITEM.
I CAN NOT FIND OUT ANYTHING ABOUT THIS ITEM. THERE ARE NO INSTRUCTIONS INCLUDED EITHER. HERE IS WHAT I DO KNOW- KLOCKNER-BARTELT- DIGITAL DISPLAY - 4 NUMBER. THERE ARE LIGHT UP OPTIONS RUNNING DOWN THE FRONT PANEL AND THEY ARE- CHANNEL -SET POINT- TOTAL COUNT- STOP COUNT- CLUTCH- BRAKE- REMOTE. THERE IS A TOUCH PAD ON THE RIGHT SIDE AND OPTIONS FOR DISPLAY/SELECT- UP/DOWN ARRROW- REMOTE.
ON THE BACK SIDE THERE IS A GREEN PLUG IN SOURCE- TB2 AND TB1
TB2 PLUG IN IS 115V~COM POWER- HI/LO BRAKE- HI/LO CLUTCH- COM H1 START- NC
TB1 IS PICK-UP- REMOTE- NC-NC-NC-NC.
ALSO STATED ON THE BACK IS PICOFUSE 1A-125 VOLTS.
