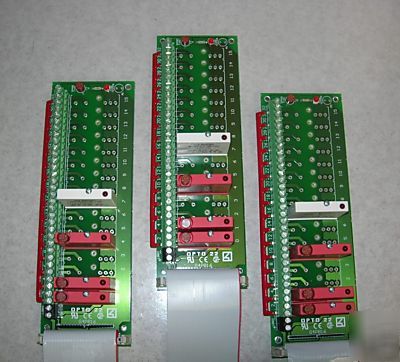

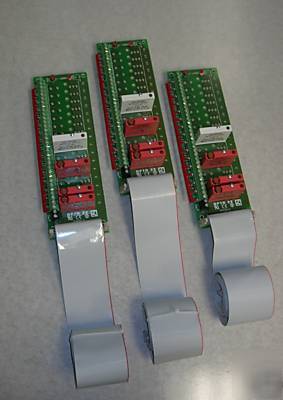

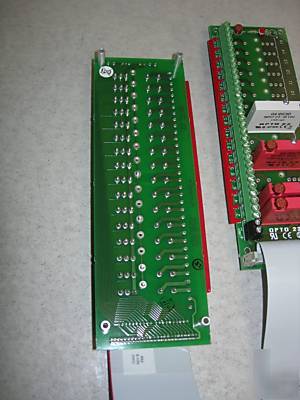

New 3 opto 22 G4PB16 i/o module rack 5 modules & cable

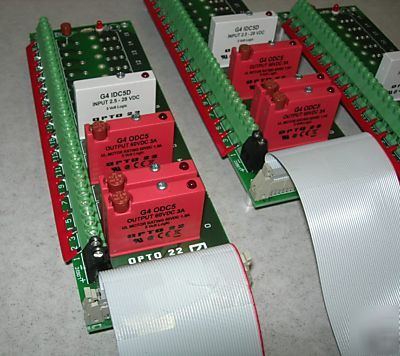

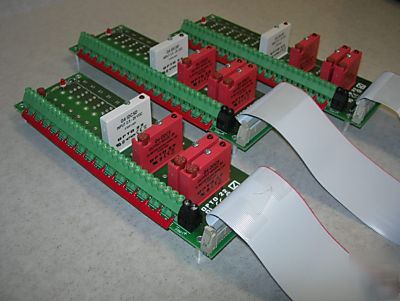

The G4PB16 I/O mounting rack accommodates up to 16 G4 I/O modules. Insert and remove modules easily and quickly without disturbing field wiring. Modules are secured to the mounting rack with a threaded captive hold-down screw. Barrier strips with screw terminals provide the field and mounting rack power connections. A header connector accepts a standard 50-pin cable for the logic connections.
Requires minimum panel space
UL recognized, CSA certified, CE approved
Uses a single 5, 15, or 24 VDC power supply for control power
Interface Connector: 95 percent relative humidity, non-condensing
Field: Screw-type barrier strip accommodates up to 10 AWG wire
http:// /documents/0246_G4_Dig_16_Ch_data_sheet.pdf
