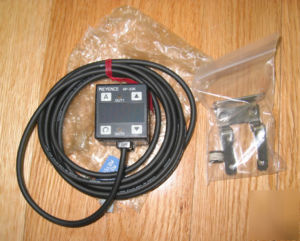

Keyence digital pressure sensor ap-33K
KEYENCE DIGITAL PRESSURE SENSOR AP-33K
* Rated Pressure - 0 to 145.0 Psi (0 to 1.000 MPa)
* Proof pressure - 217.5 Psi (1.47 MPa)
* Pressure type - Gauge pressure
* Fluid types - Air or non-corrosive gases
* Resolution - 0.2 Psi, 0.001 Mpa, 0.01kgf/cm , 0.01 bar
* Detectable pressure range - 15% to +110% of F.S
* Repeatability - 0.2% of F.S. (5 ms or more)
* Control output - 100 mA max. (40 V max.), Residual voltage: 1 V max. 2-output (N.O./N.C. selectable)
* Analog output - 1 to 5 V (Load impedance: 47 k min.)
* Power supply - 12 to 24 VD 10%
* Ambient temperature - 0 to 50 C (32 to 122 F), No condensation
* Relative humidity - 35 to 85%, No condensation
* Material - Front housing: Polyamide, Front panel sheet: PET, Rear housing: Polysulfone,
Pressure port: Die-cast zinc, Cable: Oil-proof cabtyre cable
